4 Specifications
24 / 44 BAL_K21_EN_3V3_BLA_121-006423019
4 Specifications

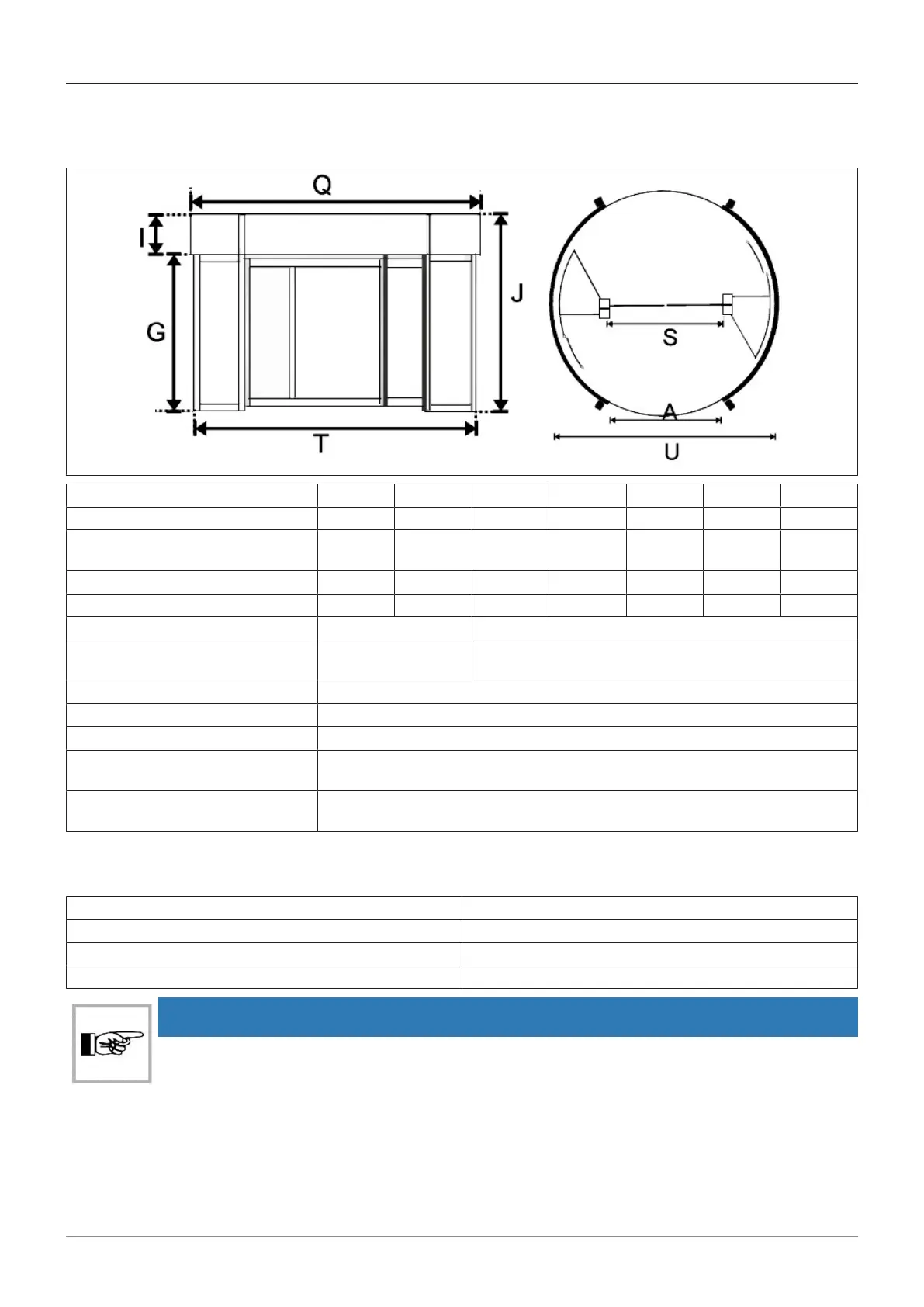

4.1 Dimensions
U = interior diameter 3600 mm 4200 mm 4800 mm 5400 mm 6000 mm 6600 mm 7200 mm
A = passage width 2005 mm 2347 mm 2688 mm 3030 mm 3371 mm 3713 mm 4055 mm
Q = total exterior diameter (incl.
canopy)
3758 mm 4358 mm 4958 mm 5558 mm 6158 mm 6758 mm 7358 mm
T = exterior diameter (drum wall) 3652 mm 4252 mm 4852 mm 5452 mm 6052 mm 6652 mm 7252 mm
S = centre passage width 1640 mm 1940 mm 2240 mm 2540 mm 2840 mm 3140 mm 3440 mm
I = canopy height with dust roof 350 mm 550 mm
I = canopy height with integrated
roof pan
370 mm 570 mm
I = canopy height with air curtain 650 mm
G = passage height 2100 – 3000 mm
J = total height G + I
LH = light height
((shell dimensions)
min. J + 50 mm
LB = light width
((shell dimensions)
min. Q + 100 mm
Optionally, intermediate dimensions are also possible in the range from 3200 mm to 7000 mm.
4.2 Electrical specifications power supply
Mains voltage 100-240 VAC, 50/60 Hz
Nominal power See system nameplate
Fuse 16 A breaker with tripping characteristics C or K
Safety class 1
NOTICE
The power connection must be installed by a licensed electrician. One must be able to turn
the power supply off completely via a main switch or residual current circuit breaker.
