NOTICE
SLIDING DOOR OPERATION only functions when "SLIDING DOOR OPERATION" has been se-
lected on the BDE-D-KTA and when the rotation unit is in the cross position.
The systems can be operated by pressing the appropriate buttons on the control units:

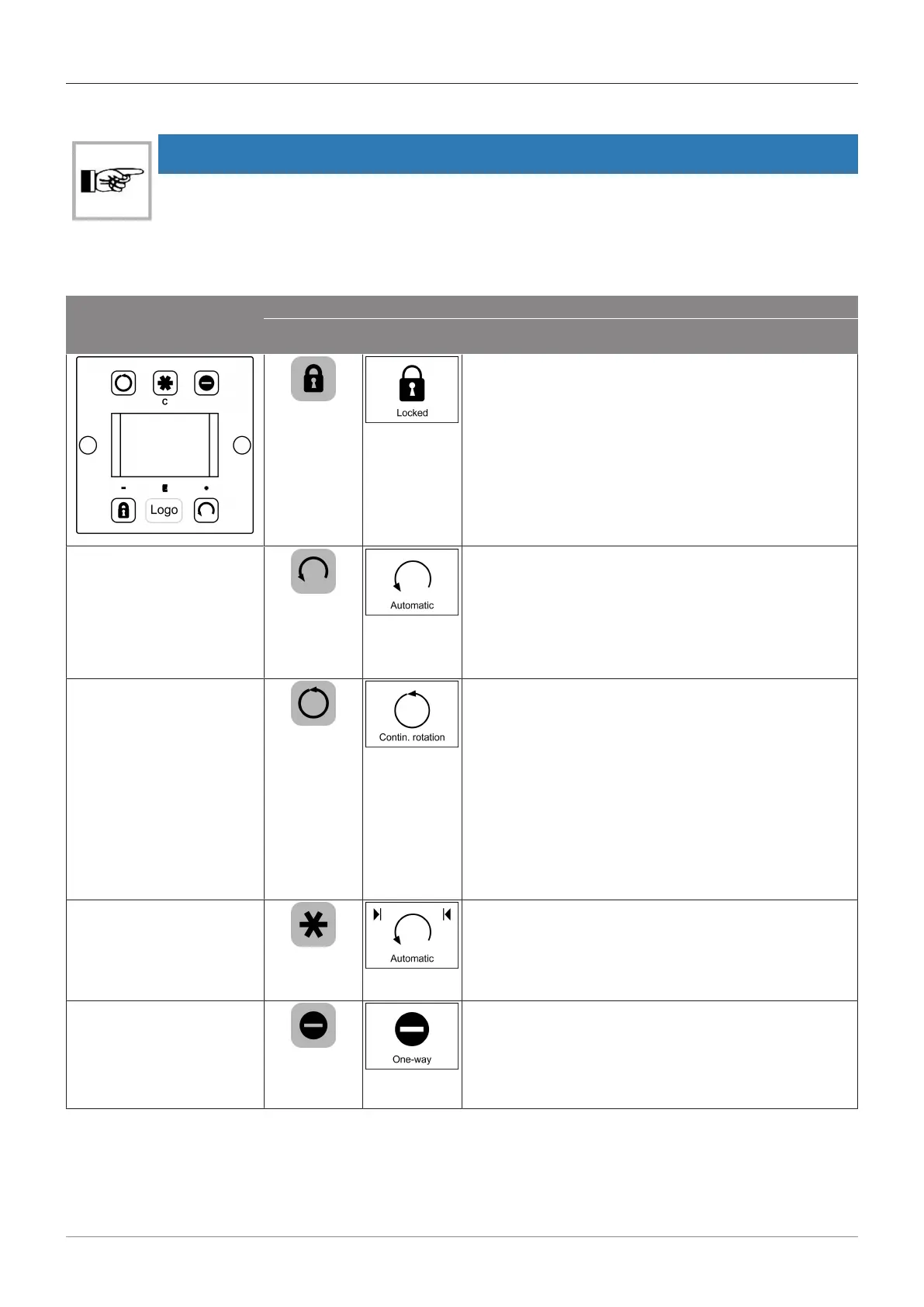

5.1 Revolving door mode selection
Control unit
BDE-D-KTA for revolving
door operation
Operation
Key Display Function
OFF / LOCKED
Night shield with lock mechanism
– The rotation unit rotates to the closed position.
– The rotation unit and the radial protective sliding
wing lock automatically in the closed position.
– Depending on the configuration, the motion detect-
ors are either still activated or already deactivated.
– The display case and the radial protective sliding
wings are used together as a night shield.
AUTOMATIC
Start rotation
– The revolving door is in automatic operating mode.
– The rotation is activated by the motion detectors.
– If the motion detectors are no longer activated the
rotation unit will rotate to the next start position.
CONTINUOUS ROTATION
Slow speed rotation. If a person is detected it acceler-
ates to walking speed.
– The rotation unit rotates continuously at slow speed.
It accelerates to walking speed, once a person
enters the detection range of the motion detectors.
– If the motion detectors are no longer activated, the
rotation unit will rotate to the next start position and
then go back to slow speed.
– The rotation unit will permanently rotate until another
operating mode is chosen.
START POSITIONS
Switch to the start position:
Open normal position
or
closed special position (e.g. winter)
ONE WAY
Passage is only possible in one direction
– The exterior motion detectors are deactivated.
– The revolving door is only accessible from one direc-
tion (e.g. closing time from inside to out).
