Record K21 - Legend for Safety Features and Control Elements

3 Description
16 / 44 BAL_K21_EN_3V3_BLA_121-006423019
EXTERIOR
INTERIOR

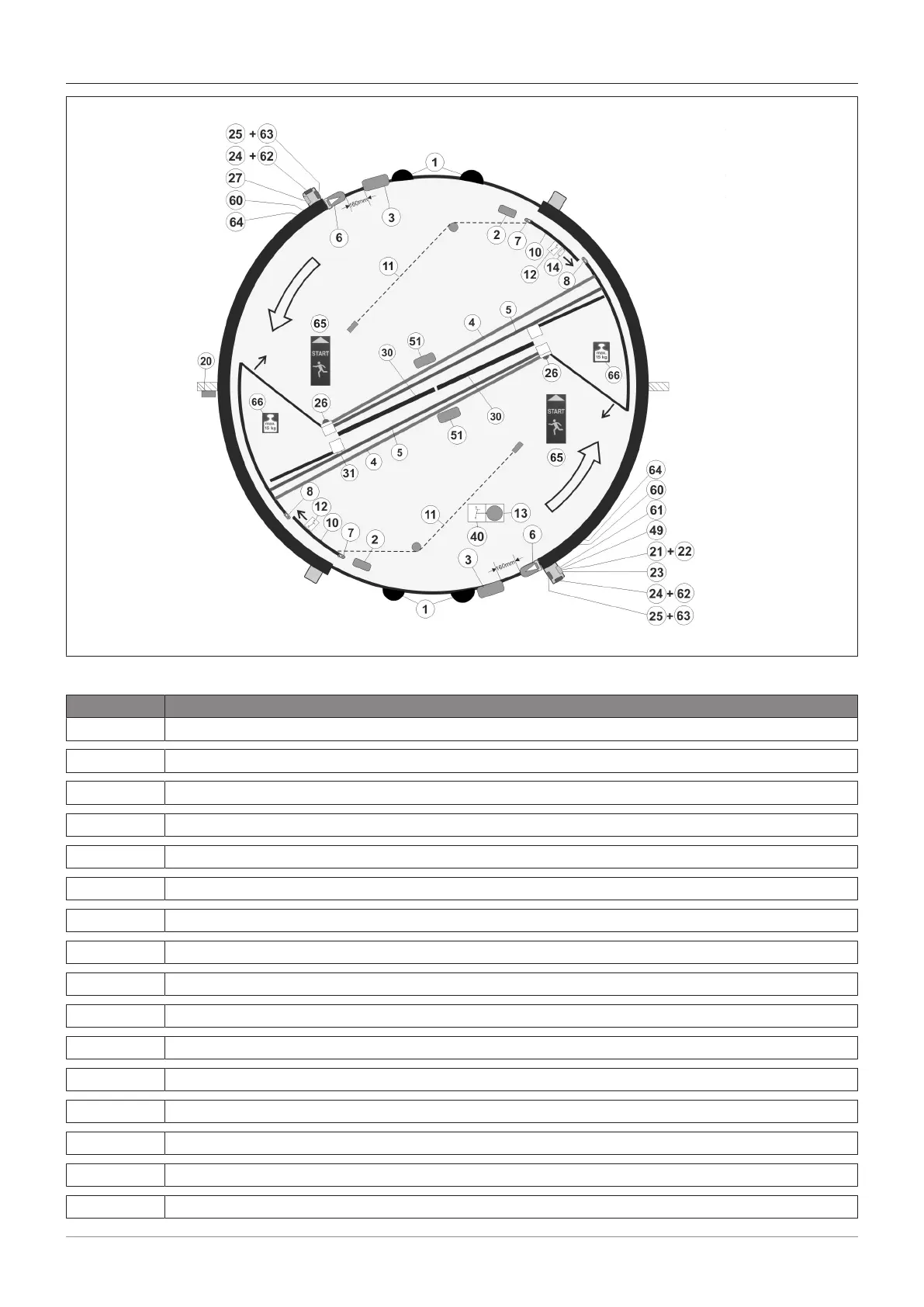

3.4.1 Legend for safety features and control elements
Pos. No. Components
1 Motion detector canopy or floor installation (AKI / AKA)
2 Vertical forward sensor radial protective sliding wing (OP-VLS)
3, 3A, 3B Vertical sensors drum edges (OP-VSS)
4 Horizontal heel protection light barrier SLOW (OP-HSR)
5 Horizontal heel protection light barrier STOP (OP-HSR)
6 Vertical safety strips drum edges (SL-TRK)
7 Vertical safety strip radial protective sliding wing (SL-RSF)
8 Vertical safety strip radial fixed wing (SL-VSR)
9 Vertical safety strips turnstile wings (SL-VSR)
10 Radial protective sliding wing (RSF)
11 Power storage (rubber rope)
12 Surveillance contact radial protective sliding wing (UW-RSF)
13 Rotor lock
14 Radial protective sliding wing lock
15, 15A Sensors turnstile wings (OP-VSR)
16 Horizontal heel protection safety strips (SL-FES)
