4” Standard Pump Installation, Operation & Service Manual Leak Detector Installation and Manifold Dimensions
5

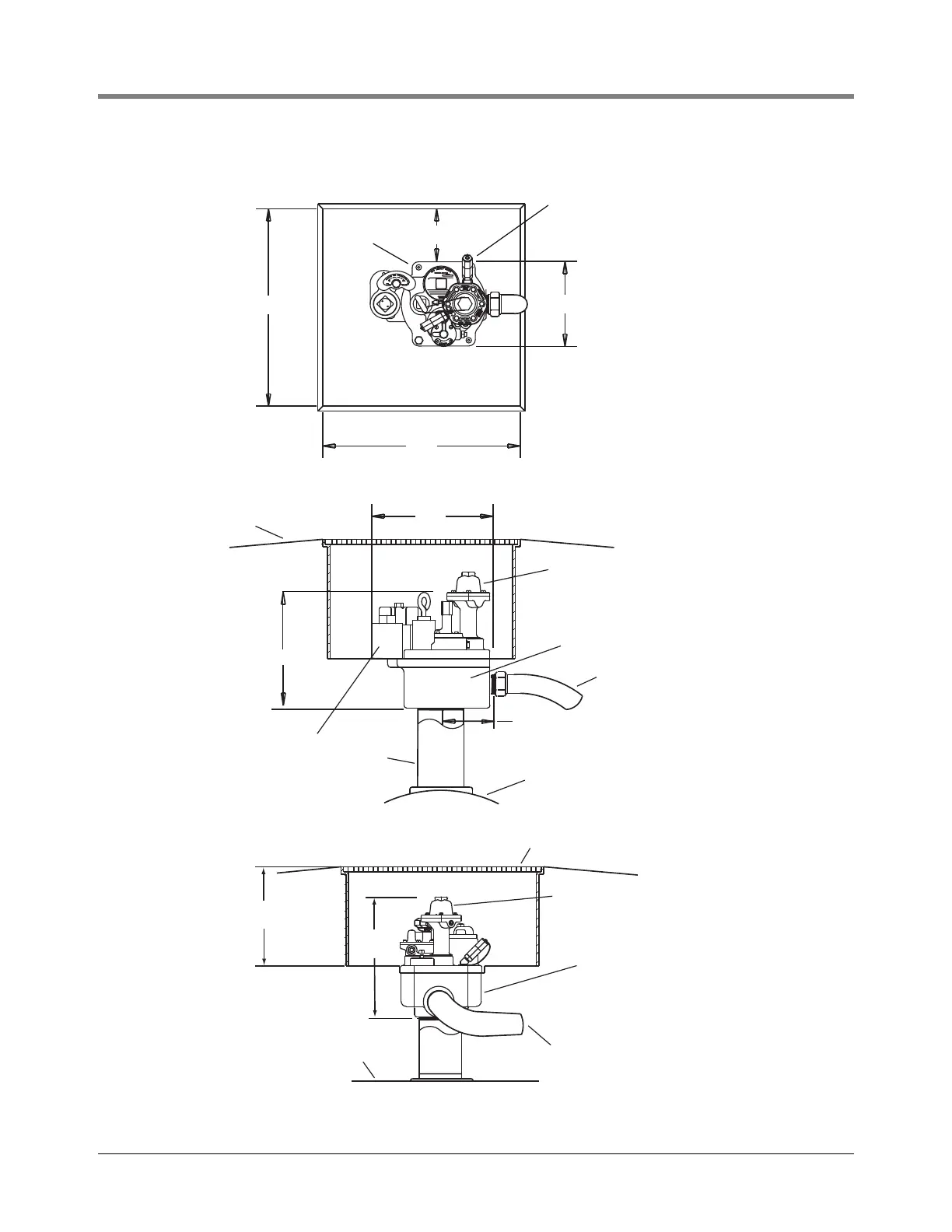

Figure 1. Leak detector and manifold dimensions
20" (508 mm)
20"
(508 mm)
12"
(305 mm)
PUMP
6" (152 mm)
8-3/4" (222 mm)
RED JACKET LEAK
DETECTOR
11'' (279 mm)
5.5'' (140 mm)
4'' RISER
TANK
20'' X 20'' (508 mm X 508 mm) MANHOLE
TANK
13''
(330 mm)
10''
(254 mm)
ELECTRICAL
CONDUIT BOX
DRIVEWAY
GRADE
FLEX
CONNECTOR
RED JACKET
SUBMERSIBLE
PUMP
RED JACKET
SUBMERSIBLE
PUMP
2-INCH OUTLET
TO DISPENSERS
RED JACKET
LEAK DETECTOR
RED JACKET
LEAK DETECTOR
