4” Standard Pump Installation, Operation & Service Manual Control Boxes
46
Control Boxes

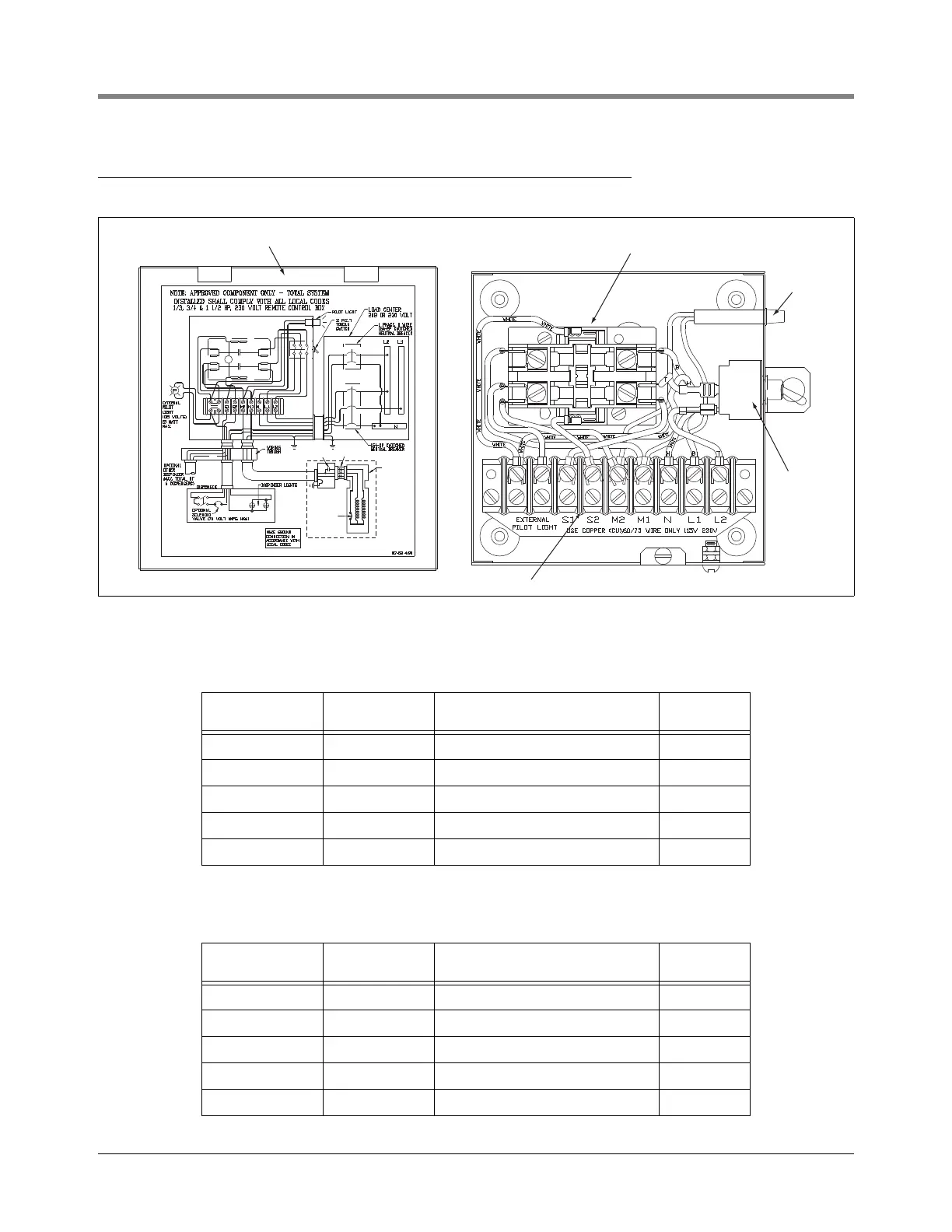

Figure 38. 880-041-5/880-042-5 control box
Table 11.- 880-041-5 Control Box w/115V Coil (60 Hz)
Item
(Ref. Figure 38) Part No. Description Qty.
1 108-572-4 Control box 1
2 147-006-1 Pilot light ass'y 1
3 014-723-1 Line contractor relay 1
4 080-858-1 Toggle switch 1
5 008-202-1 Terminal block 1
Table 12.- 880-042-5 Control Box w/230V Coil (50/60 Hz)
Item
(Ref. Figure 38) Part No. Description Qty.
1 108-572-4 Control box 1
2 147-006-1 Pilot light ass'y 1
3 014-720-1 Line contractor relay 1
4 080-858-1 Toggle switch 1
5 008-202-1 Terminal block 1
1
2
3
4
5
153-15.eps
Electrical
interlock
Internal
overload
protector
Continuous
duty capacitor
Extractable
packer
Junction box
in manifold
Motor
STP
R
B
O
G
