Parts Lists
Customer Service Number
After unpacking the equipment, please inspect the parts. Make sure all accessories are included and that no
damage occurred during shipping. Report any damage to the shipper immediately and inform a customer service
representative at 1-800-873-3313 of any equipment damage or missing parts.
Yoke Assembly and Conduit Box Parts

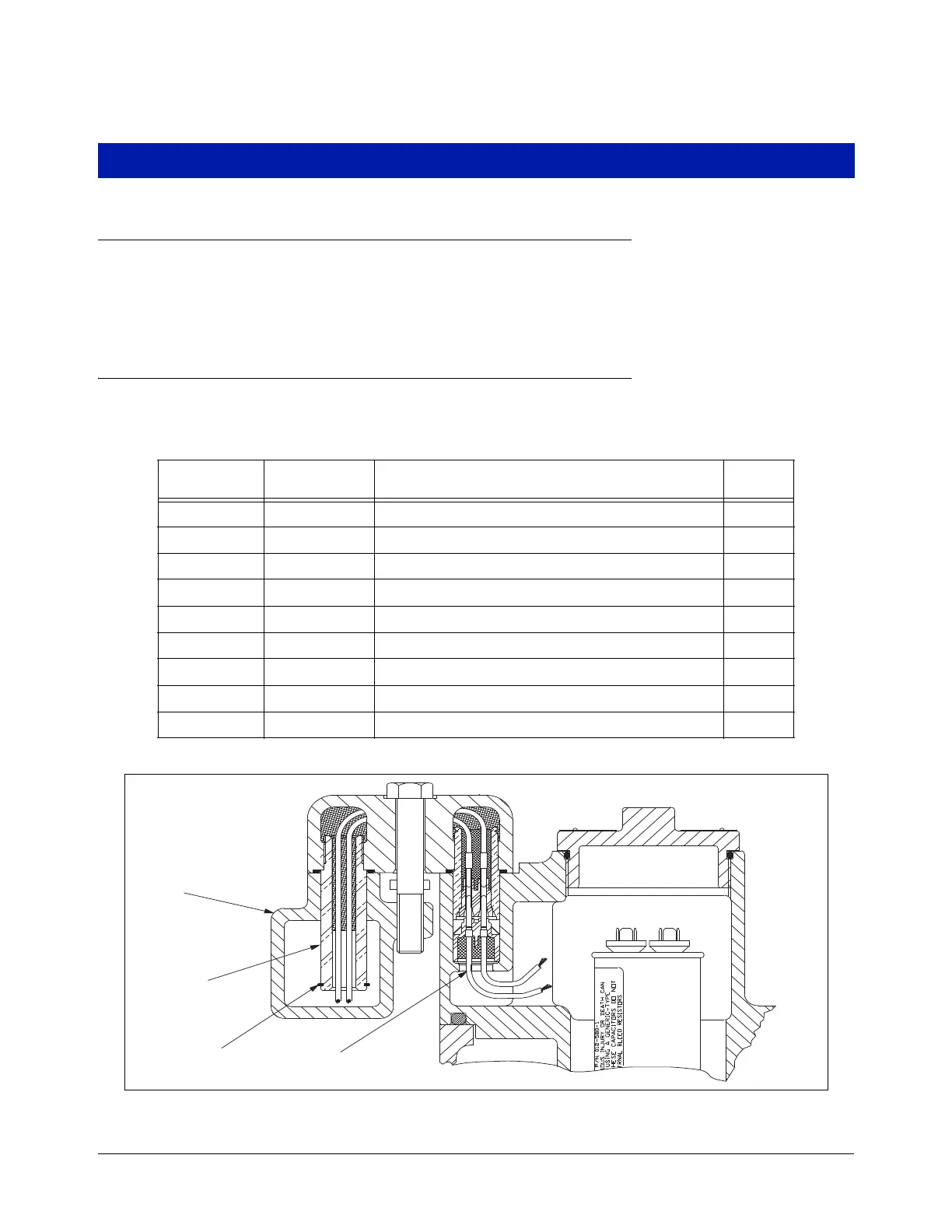

Figure 34. Yoke assembly and conduit box part identification
Table 8.- Yoke Assembly and Conduit Box Parts List
Item
(ref. Figure 34) Part No. Description Qty.
1 113-105-5 Connector - Male (2-wire) 1
1 113-555-5 Connector - Male (3-wire) (Not Shown) 1
2 072-492-1 Ring - Snap 1
3 313-015-5 Connector - Repair (2-wire) AG 1
3 313-021-5 Connector - Repair (3-wire) AG (Not Shown) 1
3 313-002-5 Connector - Repair (2-wire) Petro (Not Shown) 1
3 313-019-5 Connector - Repair (3-wire) Petro (Not Shown) 1
4 108-496-5 Conduit Box - Single Petro 1
4 108-549-5 Conduit Box - Single AG 1
1
4
3
2
