4” Standard Pump Installation, Operation & Service Manual Dimensions for Pump Selection
7
Dimensions for Pump Selection
Figure 4 shows the dimensions needed to ensure a correctly sized pump.

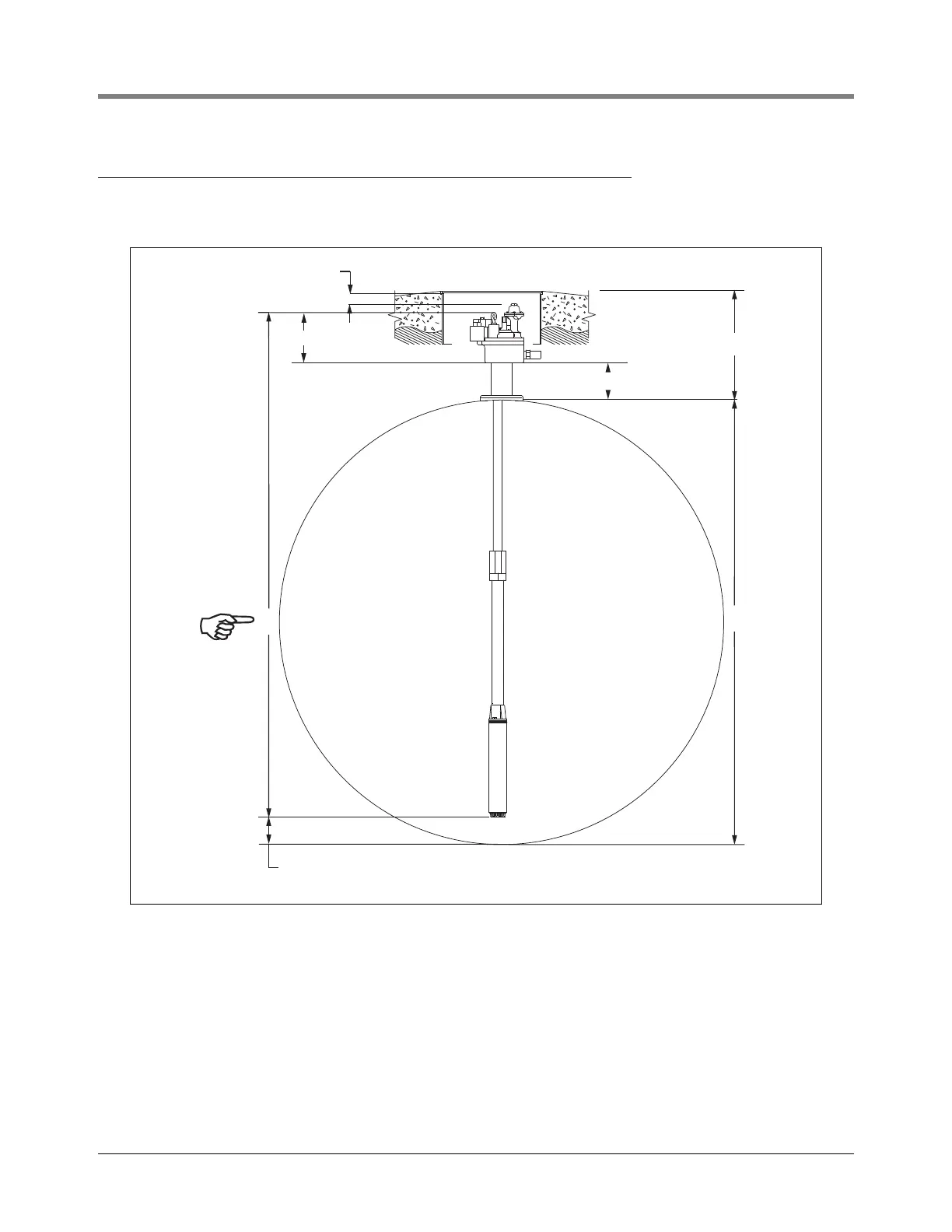

Figure 4. Measuring the tank (see Table 2 for adjustment ranges).
NOTE: Distance between centerline of pump motor and centerline of bottom fill tube should be 3 feet (914
mm) minimum. Air locking of pump after product delivery may occur at distances less than this.
11'' (279 mm)
A
D
C
B
4" (102 mm)
min.
Adjust the
Quantum
to this
dimension
5" (127 mm) STANDARD INLET AND TRAPPER
14" (356 mm) FOR FLOATING SUCTION ADAPTER
rjpumps\042-153-1\fig4.eps
