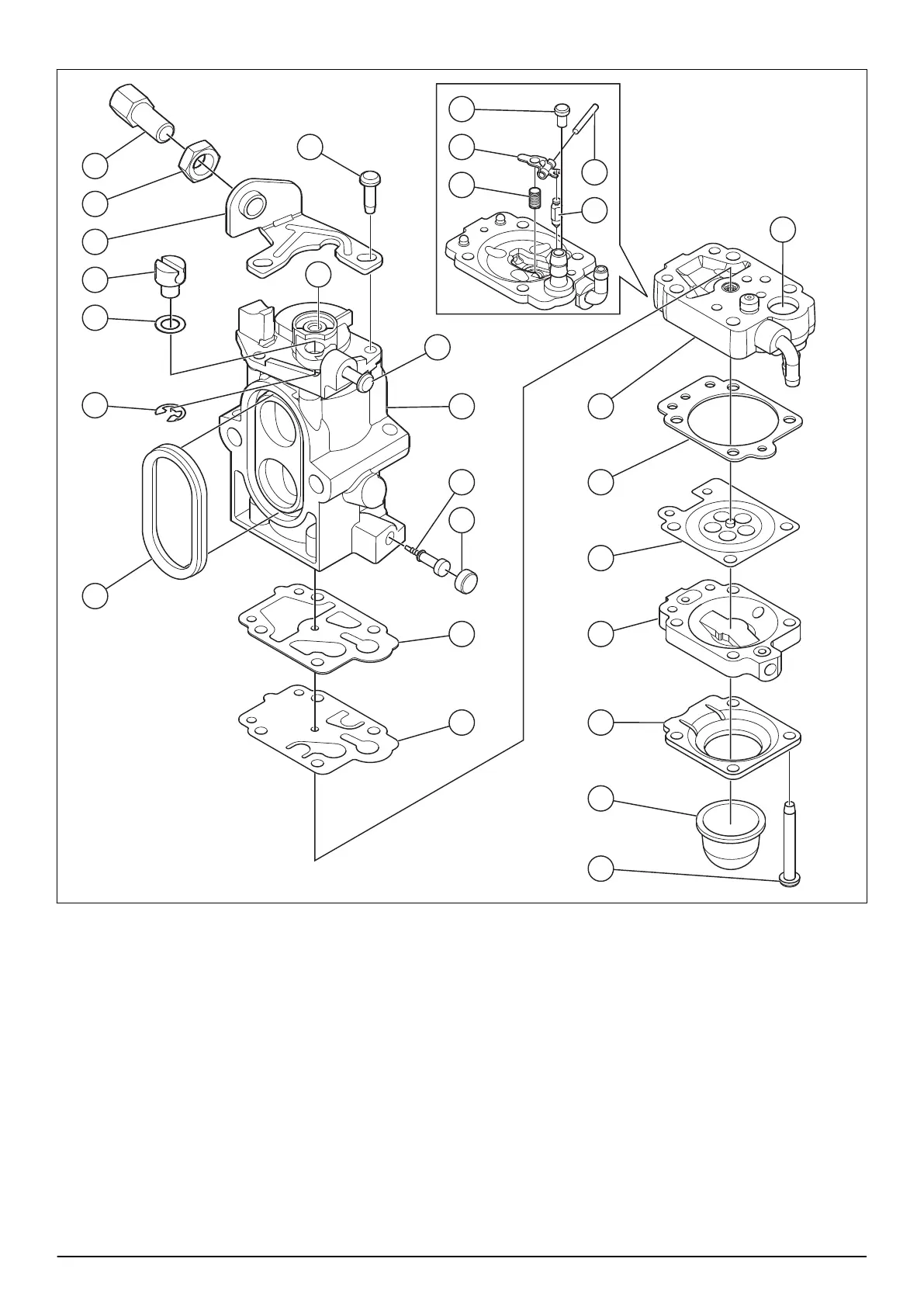

7.7.2 Overview of the carburetor
21
22
23
24
25
26
27
10
13
14
8
6
5
3
2
1
4
28
15
16
17
18
19
11
12
9
20
7
1. Throttle cable adjustment screw
2. Locknut
3. Throttle cable bracket
4. Screw
5. Throttle cable swivel
6. Washer
7. Snap ring
8. Gasket
9. Idle speed screw
10. Carburetor housing
11. High speed needle
12. Needle cap
13. Fuel pump gasket
14. Fuel pump diaphragm
15. Screw
16. Metering lever
17. Metering lever spring
18. Metering lever pin
19. Needle valve
20. Fuel screen
21. Fuel pump assembly
22. Metering gasket
23. Metering diaphragm
24. Air purge body assembly
25. Metering cover
26. Air purge bulb
27. Screw
28. L needle
