Vacuum spray degassing — 06.07.2016 - Rev. B English —

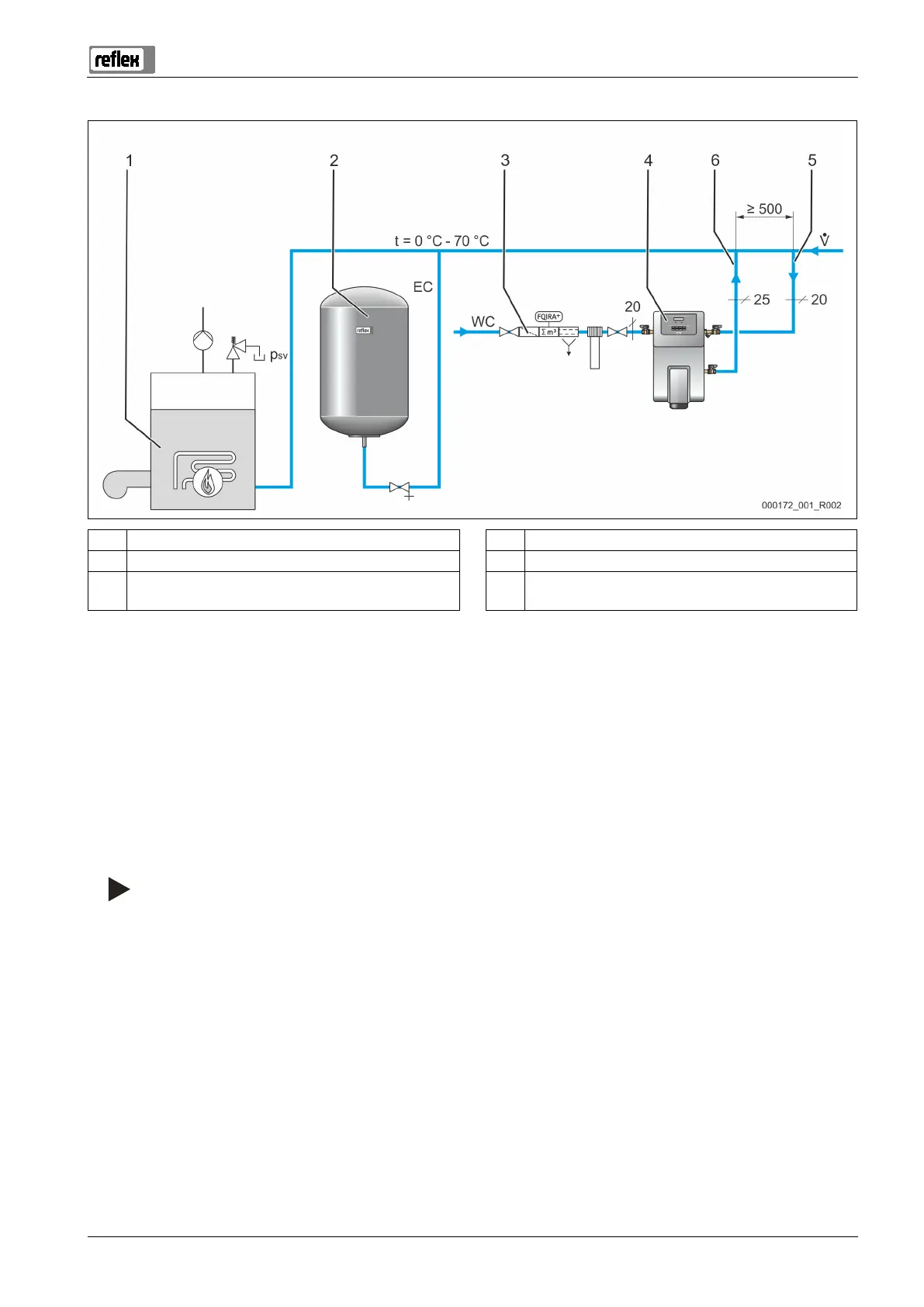

Device installation in a heating system – Pressure maintenance with diaphragm-type "MAG" expansion tank
1 Heating system 4 Device
2 Pressure expansion tank 5 "DC" degassing line (gas-rich water)
3 For optional equipment and accessories, see chapter 4.6
"Optional equipment and accessories" on page 13
6 "DC" degassing line (degassed water)
Proceed as follows:
• Connect the "DC" degassing lines in the "V" main volume flow of the plant system.
• The device requires two "DC" degassing lines to the plant system.
– One degassing line for the gas-rich water from the plant system
– One degassing line for the degassed water back to the plant system.
• Install the degassing lines near the "EC" expansion line.
– You ensure stable pressure conditions.
• Install the device near the "MAG" diaphragm expansion tank.
– You ensure pressure monitoring of the diaphragm expansion tank.
– Set the "Magcontrol" operating mode at the device controller.
Ensure the integration with the "V“ main flow volume. in particular in switching variants with hydraulic switching
points and return admixtures.
– For switching and makeup variants, see chapter 6.4 "Switching and make-up variants" on page 23 .
