Reflex Servitec 30 User Manual

Installation
22
— English Vacuum spray degassing — 06.07.2016 - Rev. B
6.3.3.2

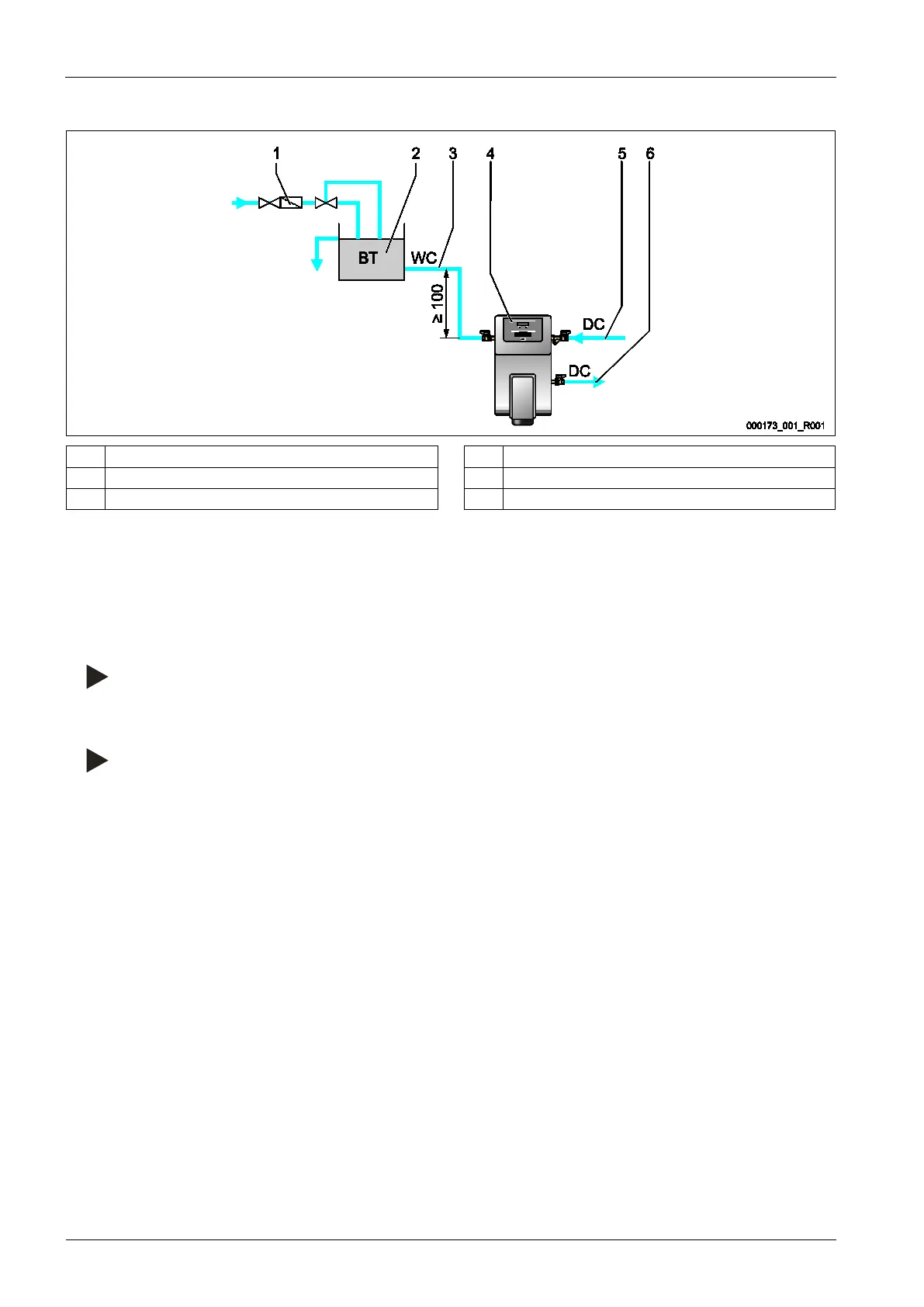

Make-up line
1 "ST" dirt trap 4 Device
2 "BT" system separator vessel 5 "DC" degassing line (gas-rich water)
3 "WC" makeup line 6 "DC" degassing line (degassed water)
For water makeup, note the following conditions:
• For a water makeup via a "BT" mains disconnect receptacle, its bottom edge must be at least 100 mm over the "PU" device pump.
• Close the connection of the "WC" makeup line when a makeup line is not connected.
– Adjust the "Levelcontrol" makeup variant at the device controller.
• Install at least one "ST" dirt trap with a mesh size ≤ 0.25 mm close upstream to the "CD" 3-ways motor ball valve.
Note!
Avoid a device fault.
–
Ensure that manual water makeup to the plant system is possible.
Note!
Use a pressure reducer in the "WC" makeup line if the idle pressure exceeds 6 bar.
