Reflex Variomat VS 1 User Manual

Technical data
Variomat 1 — 06.07.2016 – Rev. B English —
15
5.2

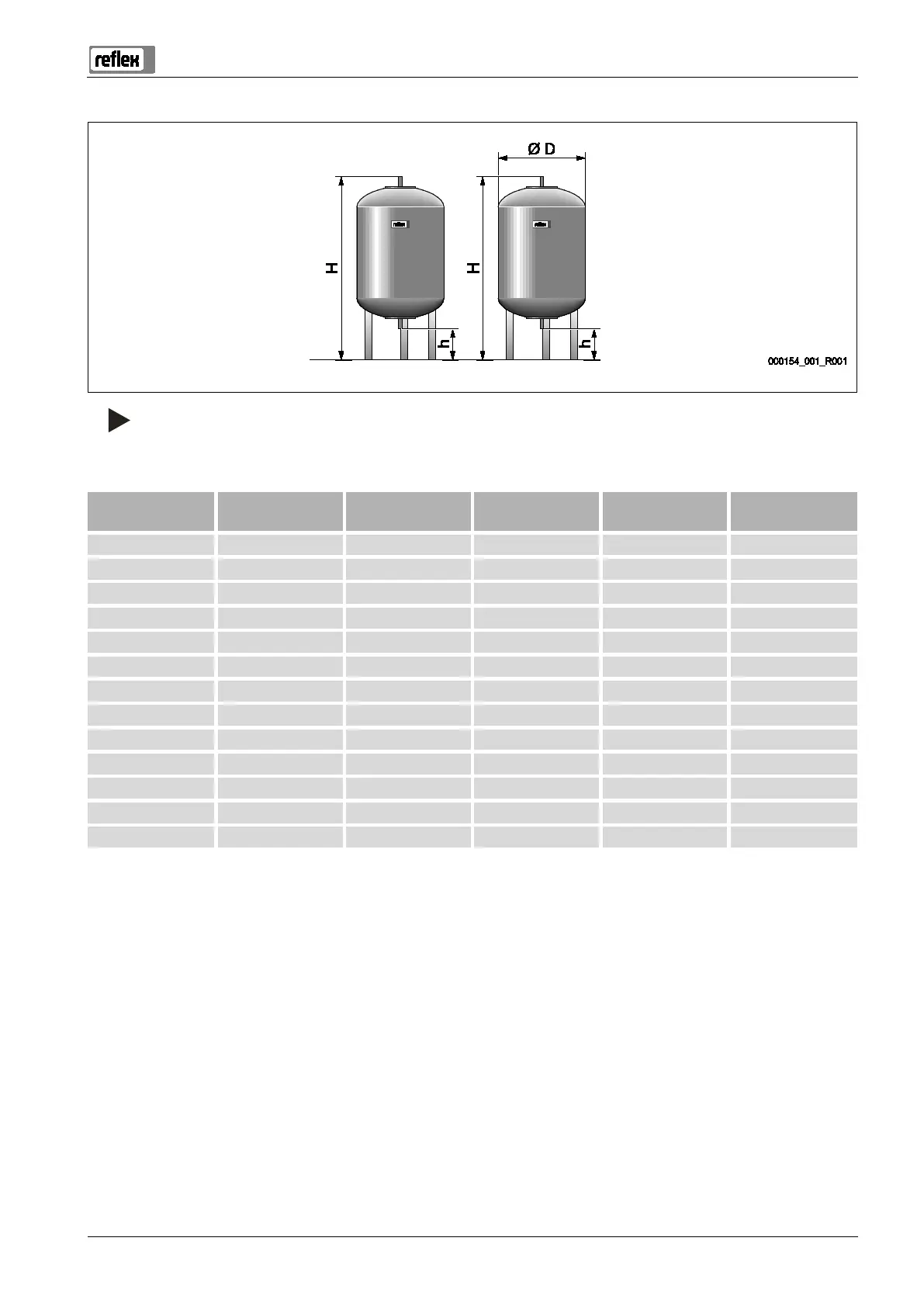

Tanks
Primary tank Secondary tank
Note!
Optional heat insulation is available for primary tanks, see chapter
4.6 "Optional equipment and accessories" on page 13 .
Type
Diameter Ø "D"
(mm)
Weight
(kg)
Connection
(inches)
Height "H"
(mm)
Height "h"
(mm)
6 bar - 200 634 37 G1 1060 146
6 bar - 300 634 54 G1 1360 146
6 bar - 400 740 65 G1 1345 133
6 bar - 500 740 78 G1 1560 133
6 bar - 600 740 94 G1 1810 133
6 bar - 800 740 149 G1 2275 133
6 bar - 1000/740 740 156 G1 2685 133
6 bar - 1000/1000 1000 320 G1 2130 350
6 bar - 1500 1200 465 G1 2130 350
6 bar - 2000 1200 565 G1 2590 350
6 bar - 3000 1500 795 G1 2590 380
6 bar - 4000 1500 1080 G1 3160 380
6 bar - 5000 1500 1115 G1 3695 380
