Controller
9.1

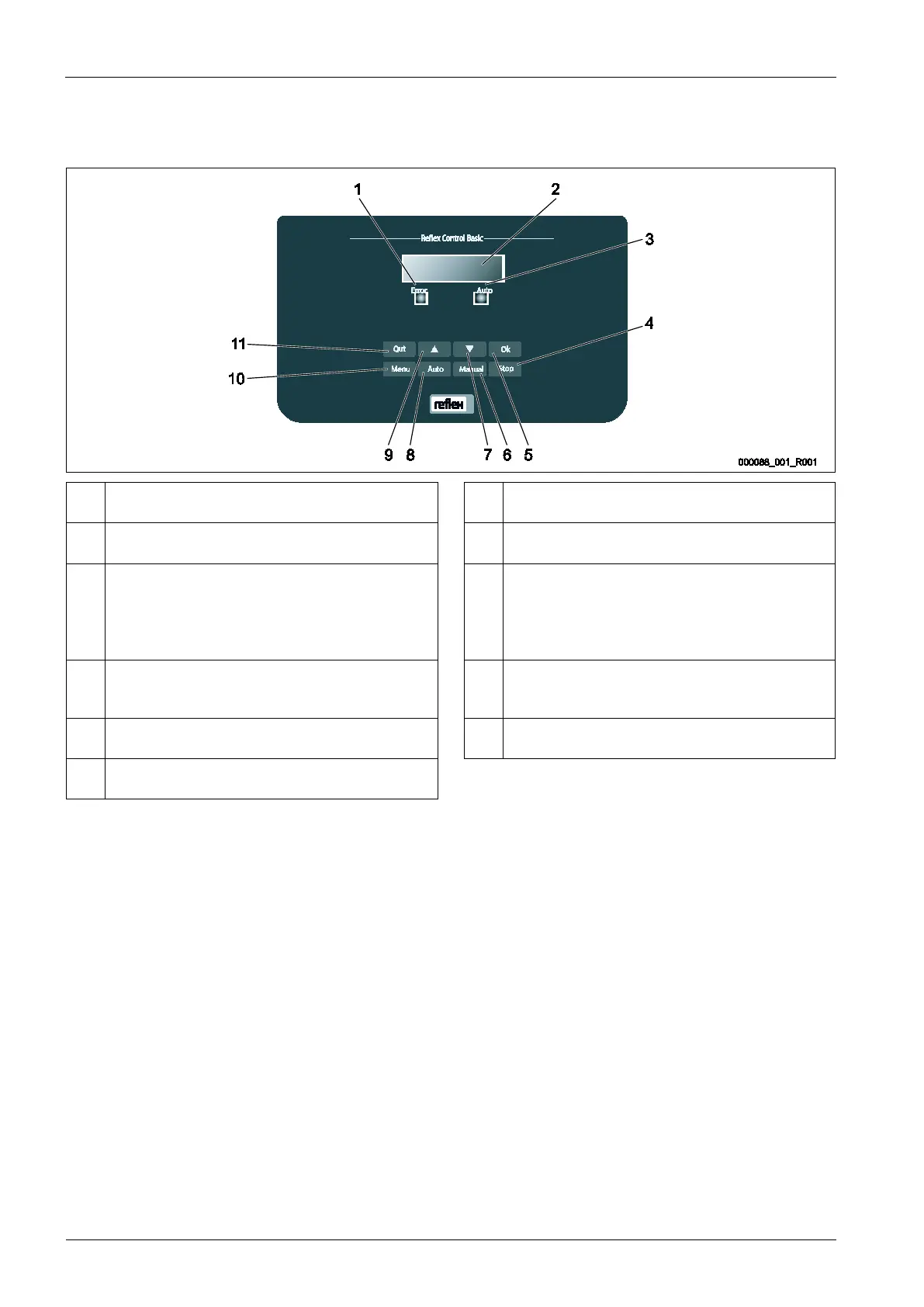

Operator panel
1 Error LED
• The Error LED illuminates in the event of a fault
7 "Back" to the previous menu
2 Display 8 Auto
• For continuous operation
3 Auto LED
• The Auto LED illuminates green in Automatic mode
• The Auto LED flashes green in Manual mode
• The Auto LED is not illuminated when the system is
stopped
9 "Forward" to the next menu
4 Stop
• For commissioning and entry of new values in the
controller
10 Menu
• Call up the Customer menu
5 OK
• Confirm actions
11 Quit
• Acknowledge messages
6 Manual
• For tests and maintenance tasks
Selecting and changing parameters
1. Use "OK" (5) to select the parameter.
2. Use the "▼" (7) or "▲" (9) arrow keys to change the parameter.
3. Use "OK" (5) to confirm the parameter.
4. Use the "▼" (7) or "▲" (9) arrow keys to switch to a different menu option.
5. Use "Quit" (11) to switch to a different menu level.
9.2
Configuring settings in the controller
You can configure the controller settings regardless of the currently selected and active operating mode.
9.2.1
Service menu
This menu is protected with a password. It can be accessed only by the Reflex Customer Service.
