Regal 32 EXPRESS - Page 121

67
Systems

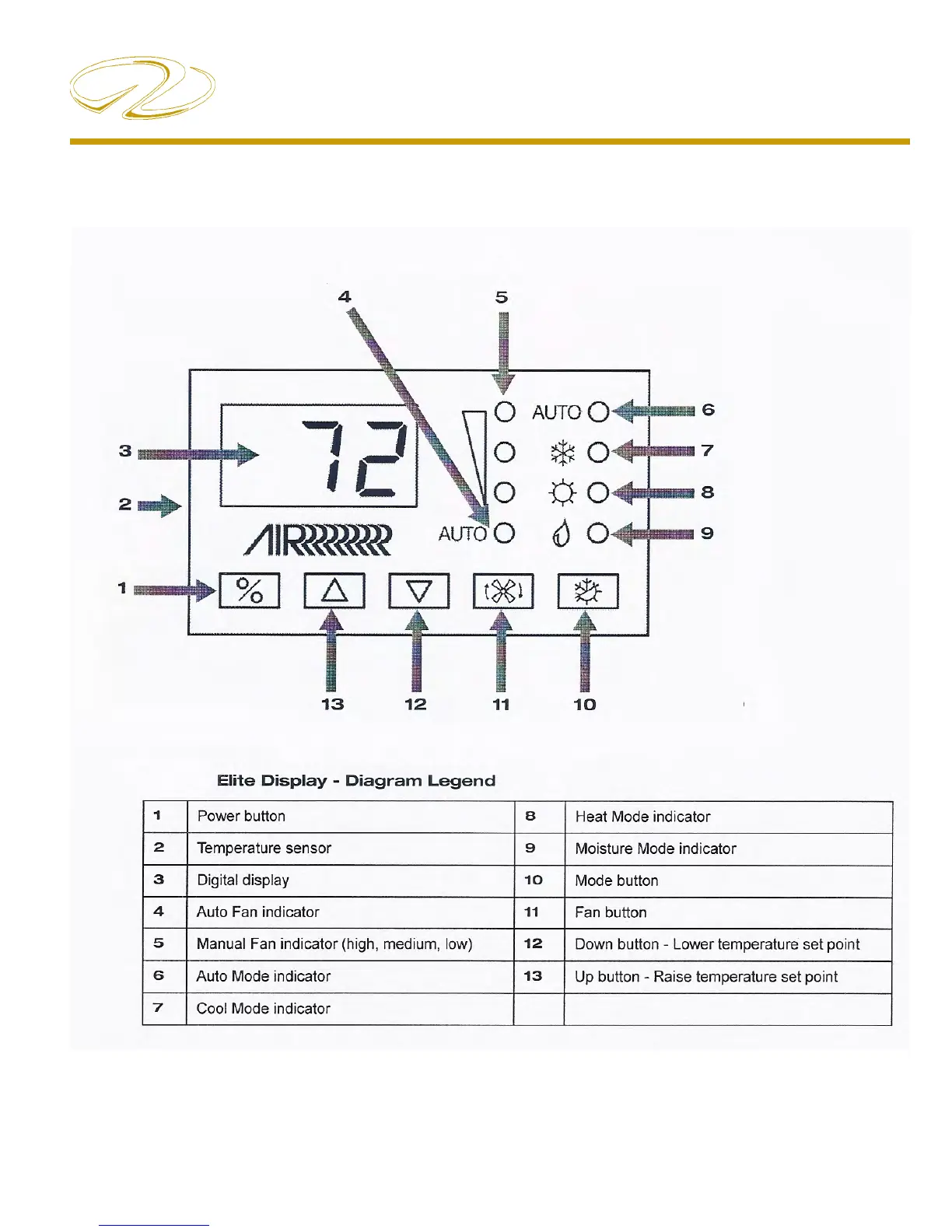

TYPICAL ELITE AC CONTROL DIAGRAM
Note: The Elite display continually monitors the system components. Should a problem develop it sends a diagnostic code to the control
(thermostaat) display. Refer to the vendor air conditioning manual (troubleshooting section) to assist in identifying the problem.
