To view the RF spectrum outside the range of the connected probe:

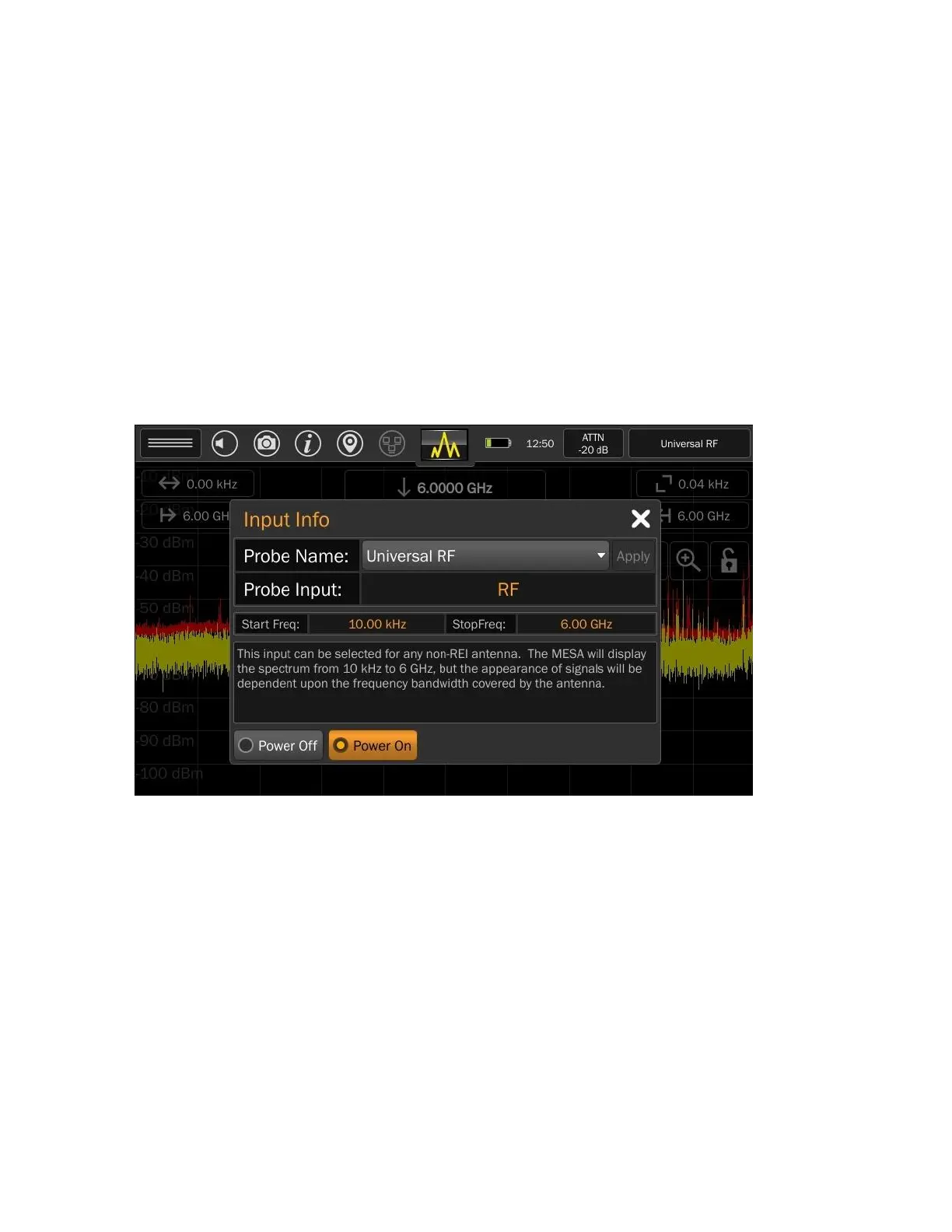

1. Open the Input Info dialog by pressing the input select button (or probe name) in the top right
corner of the MESA display.
2. In the Input Info dialog box, select “Universal RF” from the drop-down menu.
3. Select “Apply”.
Several powered probes are included with the MESA 2.0 Deluxe package, such as the Down Converter
Antenna (500 MHz – 12 GHz) and the Directional Antenna (70 MHz – 500 MHz). In order to use these
probes with the Universal RF option, it will be necessary to press the “Power On” button at the bottom
of the Input Info dialog box.
Note: It is not possible to use band 2 (6 – 12 GHz) of the Down Converter antenna while using the
Universal RF option. Only band 1 (500 MHz – 6 GHz) will be available.
