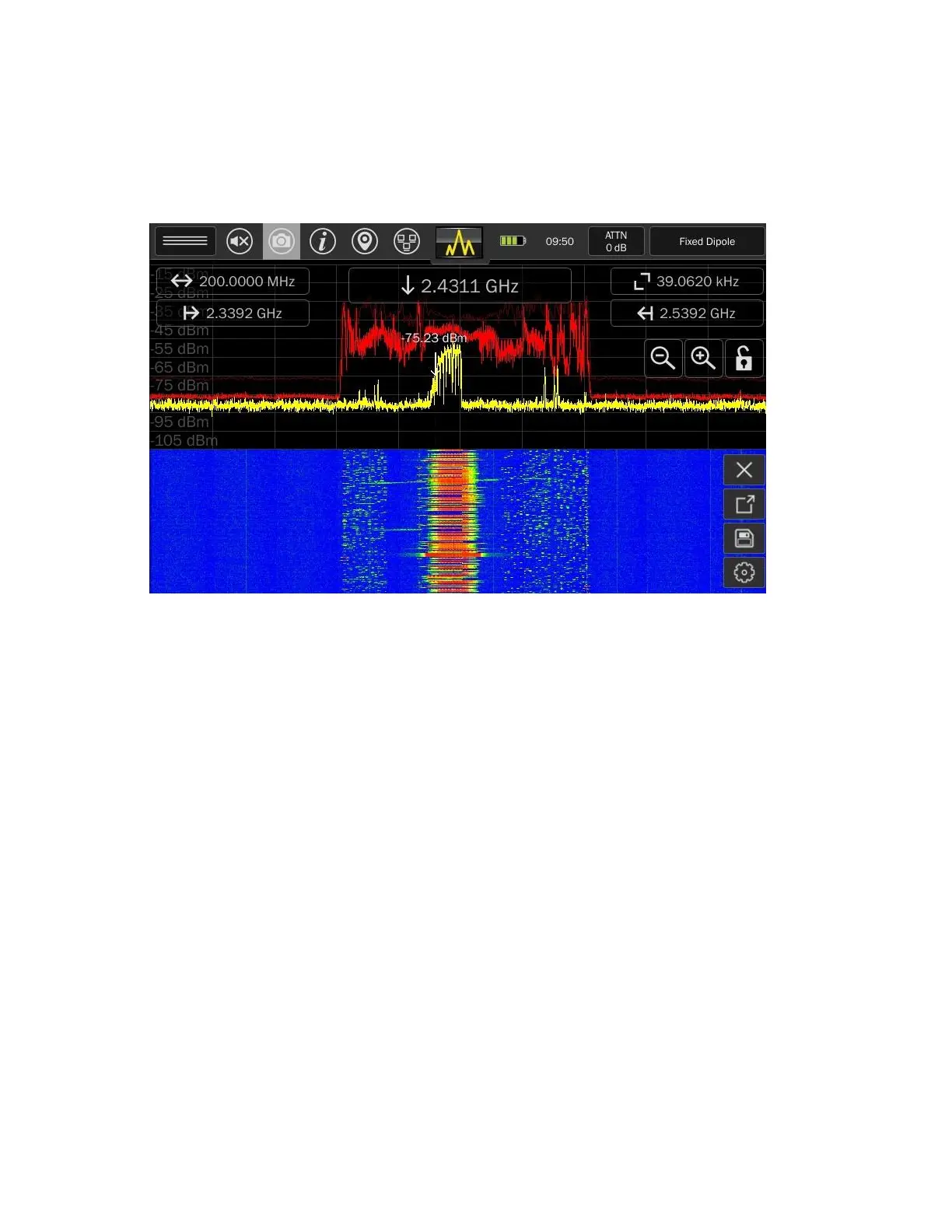

Waterfall

This option toggles the display of the waterfall. The waterfall captures a series of traces and displays

them in a waterfall format. This is a quick way to observe the RF spectrum over a period of time and

easily identify intermittent transmissions such as burst transmitters.

The following options are available from the Waterfall sidebar:

 Press the "x" to close the Waterfall display

 Press the Full-Screen button to view the waterfall full screen on the MESA display

 Press the File Dialog button to save an image of the waterfall to an inserted USB thumb drive (see

note on pg. 100)

 Press the Configuration button to change the number of lines updated per second for the waterfall

image.

It is also possible to scroll down to view past traces in the waterfall by tapping and dragging the

waterfall.
