11A-147
TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
K9K
11A

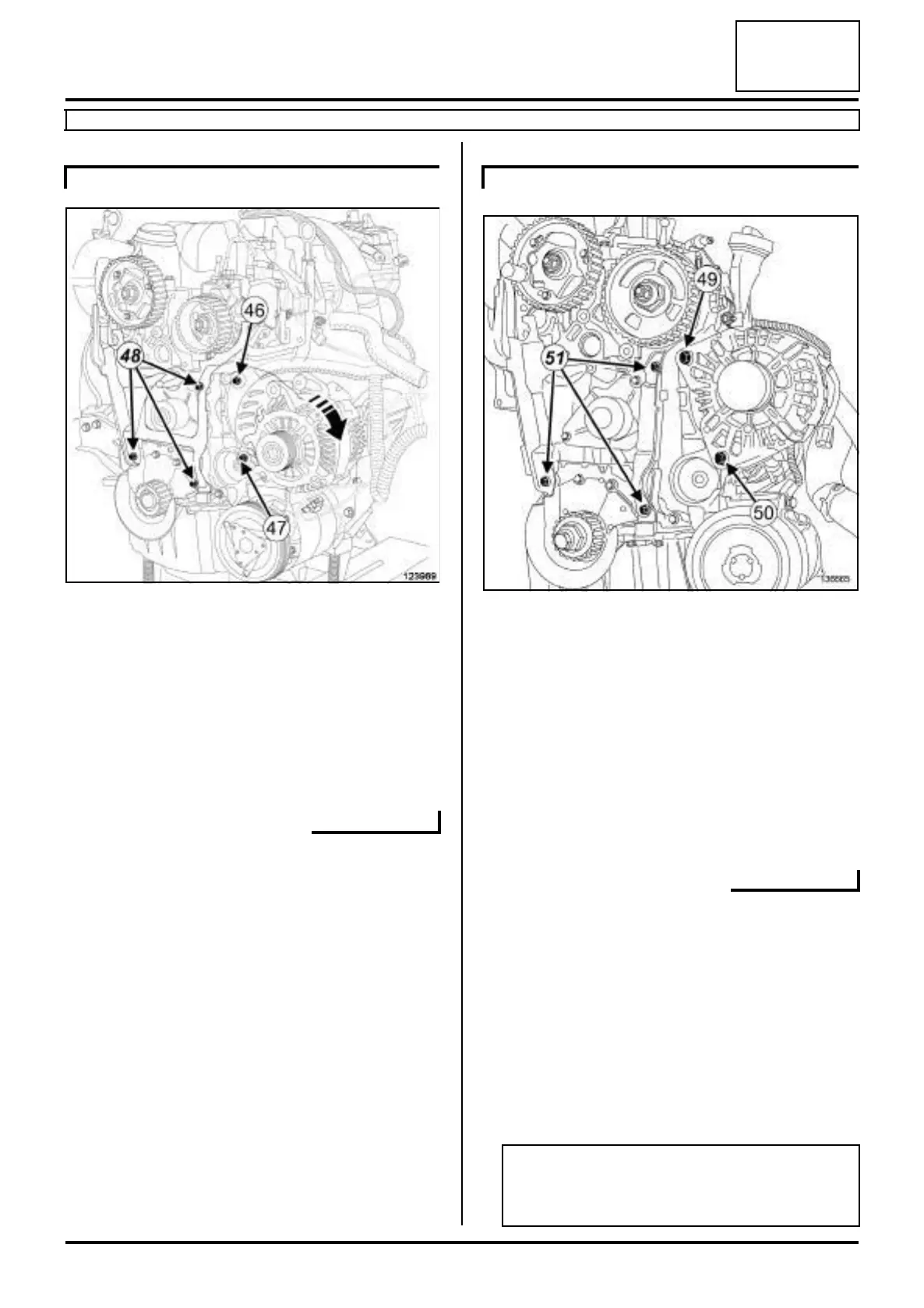

a Remove the alternator upper bolt (46) .
a Loosen the alternator lower bolt (47) .
a Tilt the alternator slightly towards the front of the ve-
hicle.
a Remove:
-the bolts (48) of the inner cover,
-the inner cover.
a Remove the alternator upper bolt (49) .
a Loosen the alternator lower bolt (50) .
a Tilt the alternator slightly towards the front of the ve-
hicle.
a Remove:
- the bolts (51) of the inner cover,
- the inner cover.
a Fit the tool (Mot. 1390) under the vehicle.
a Remove:
- the safety strap(s),
- the (Mot. 1453) fitted with the (Mot. 1453-01).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a
K9K, and 832
123969
K9K, and 830
136665
Note:
The operation to remove the cylinder head requi-
res two people.
