11A-148
TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
K9K
11A
a
a Remove:

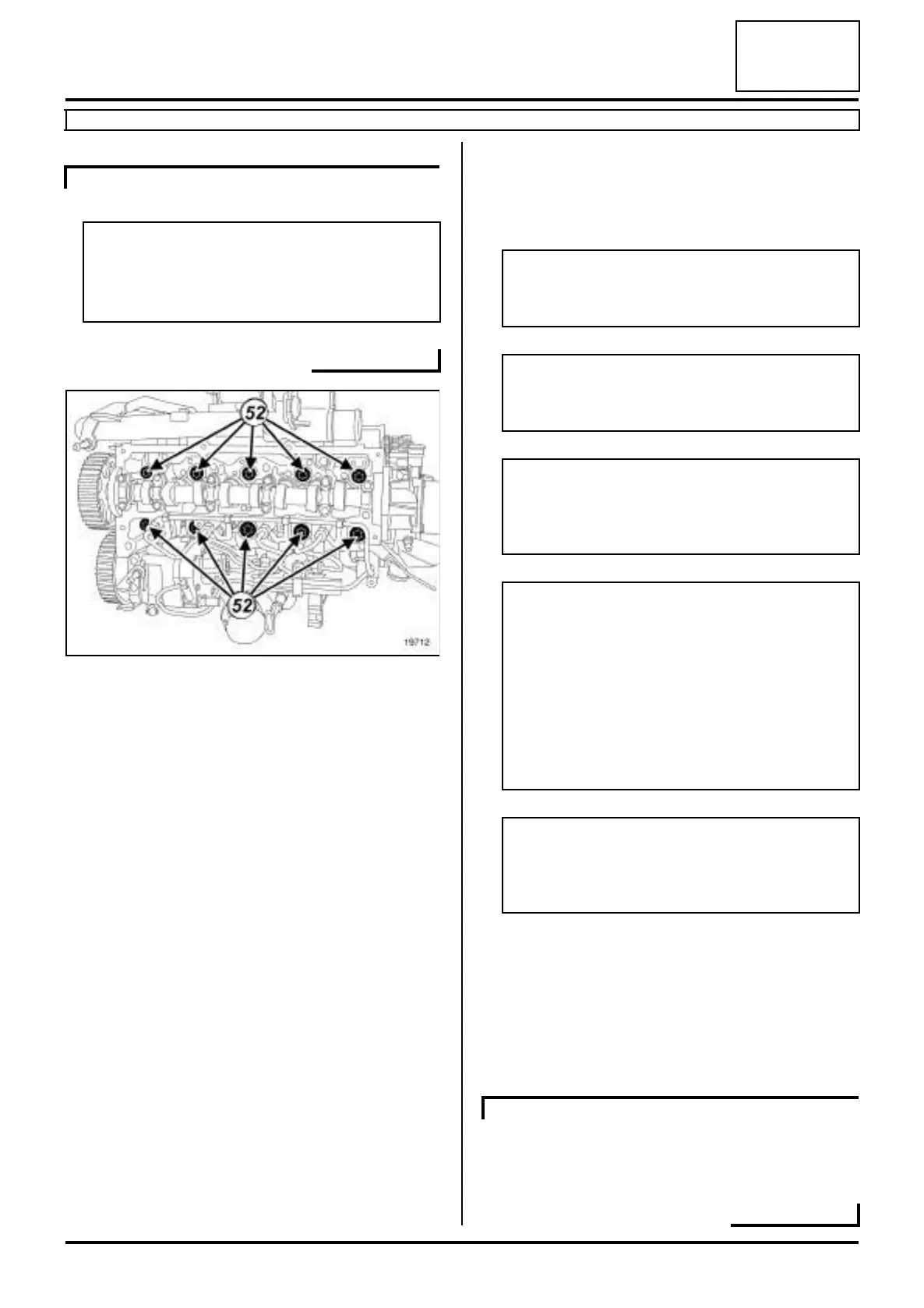

-the cylinder head bolts (52) ,
-the cylinder head from the cylinder block,
-the cylinder head gasket.
REFITTING
I - REFITTING PREPARATION OPERATION
a
a parts always to be replaced: Cylinder head bolts
(10,02,01,14).
a parts always to be replaced: Cylinder head gas-
ket (10,02,01,04).
a parts always to be replaced: Rocker cover gas-
ket (10,02,01,12).
a Always replace the seal of the oil vapour rebreathing
valve.
K9K, and 832
Note:
Tu rn the camshaft slightly to facilitate the removal
of the cylinder head bolt on the camshaft position
sensor target.
19712
IMPORTANT
Wear goggles with side protectors for this opera-
tion.
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
WARNING
Do not allow this product to drip onto the pain-
twork.
Clean the cylinder head carefully to avoid any
foreign bodies entering the oil return and supply
pipes.
Failure to follow this advice could lead to the
blocking of the various oil inlet galleries, which
would quickly result in engine damage.
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
K9K, and 830
