10A-35
ENGINE AND CYLINDER BLOCK ASSEMBLY
Sump: Removal - Refitting
K9K
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the dipstick,
-the engine undertray bolts,
-the engine undertray.
a Drain the engine oil (see 10A, Engine and cylinder
block assembly, Engine oil: Draining - Refilling,
page 10A-40) .
a Remove the lower engine tie-bar (see 19D, Engine
mounting, Lower engine tie-bar: Removal - Refit-
ting, page 19D-33) .
a Remove:

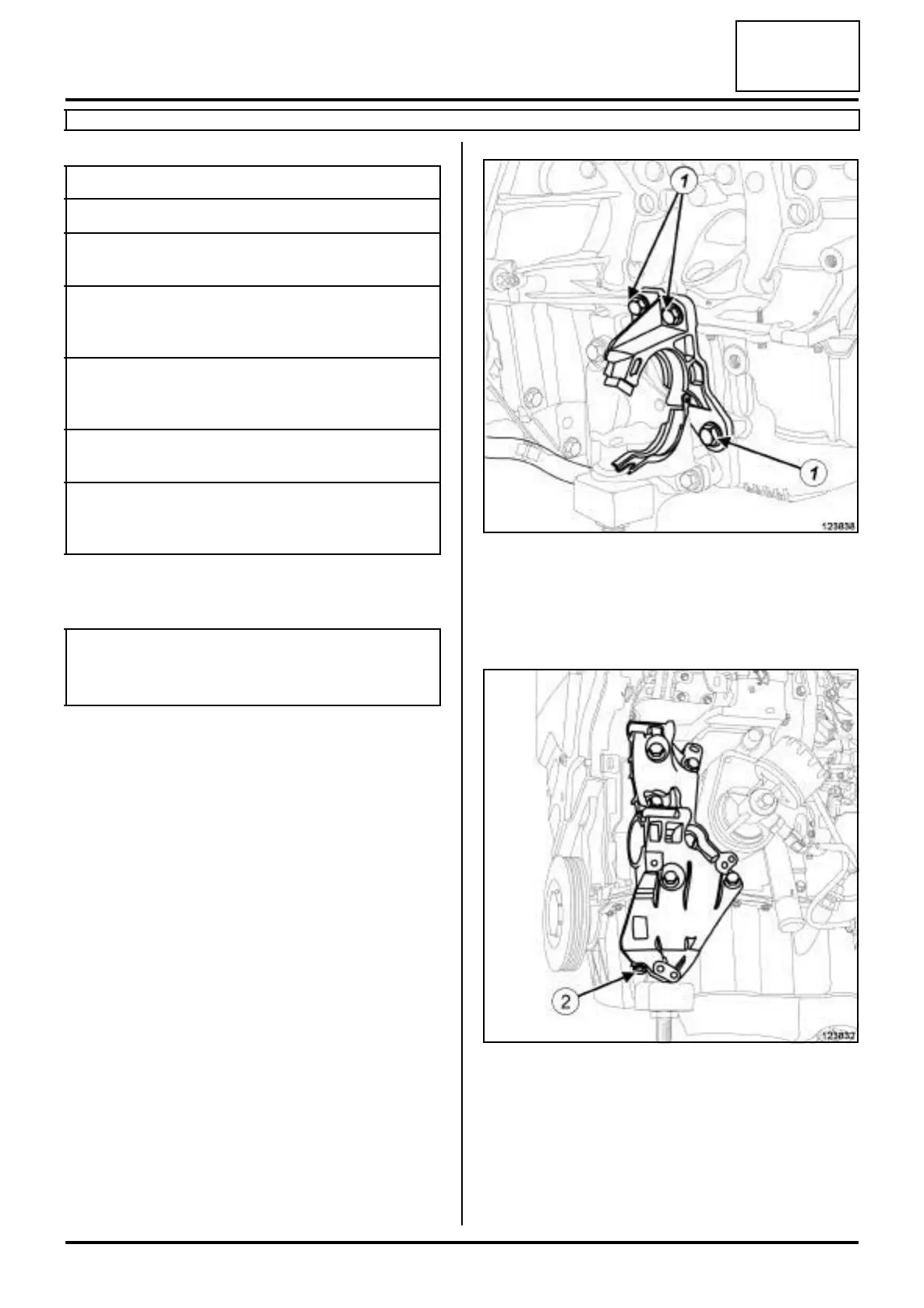

- the bolts (1) from the front right-hand wheel drives-
haft relay bearing,
- the front right-hand wheel driveshaft relay bearing.
a Remove the lower bolt (2) from the multifunction
support.
Tightening torquesm
sump bolts 14 N.m
sump bolts on the gear-
box
44 N.m
catalytic converter ups-
tream strut bolt on the
cylinder block
50 N.m
catalytic converter ups-
tream strut bolts on the
catalytic converter
26 N.m
multifunction support
lower bolt
25 N.m
front right-hand wheel
driveshaft relay bearing
bolts
44 N.m
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
123838
123832
