10A-36
ENGINE AND CYLINDER BLOCK ASSEMBLY
Sump: Removal - Refitting
K9K
10A

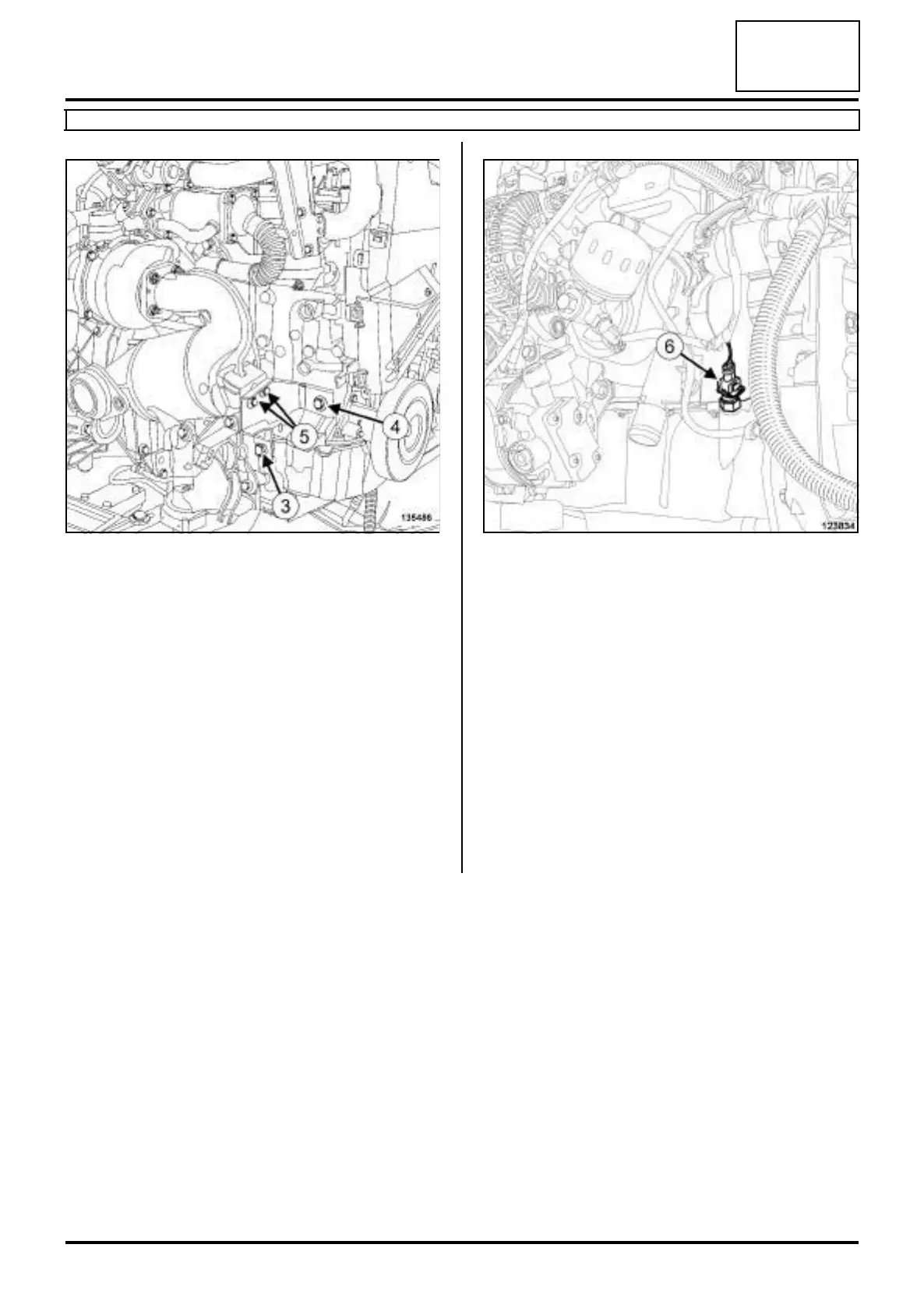

a Undo the bolt (3) of the catalytic converter upstream
strut from the sump.
a Remove:
-the bolt (4) of the catalytic converter upstream strut
from the cylinder block,
-the bolt (5) of the catalytic converter upstream strut
from the catalytic converter,
-the catalytic converter upstream strut.
a Unclip the drain pipe from the injector rail protector:
-from the gearbox,
-from the sump.
a Move the injector rail protector drain pipe away from
the sump.
a Disconnect the connector (6) from the oil level sen-
sor.
135486 123834
