13B-130
DIESEL INJECTION
Leak flow from injectors: Check
K9K, and 830
13B
CHECKING
I - PREPARATION OPERATION FOR CHECK
a Remove:
-the engine cover,
-the turbocharger air outlet pipe (see 12B, Turbo-
charging, Intercooler air inlet pipe: Removal -
Refitting, page 12B-41) .

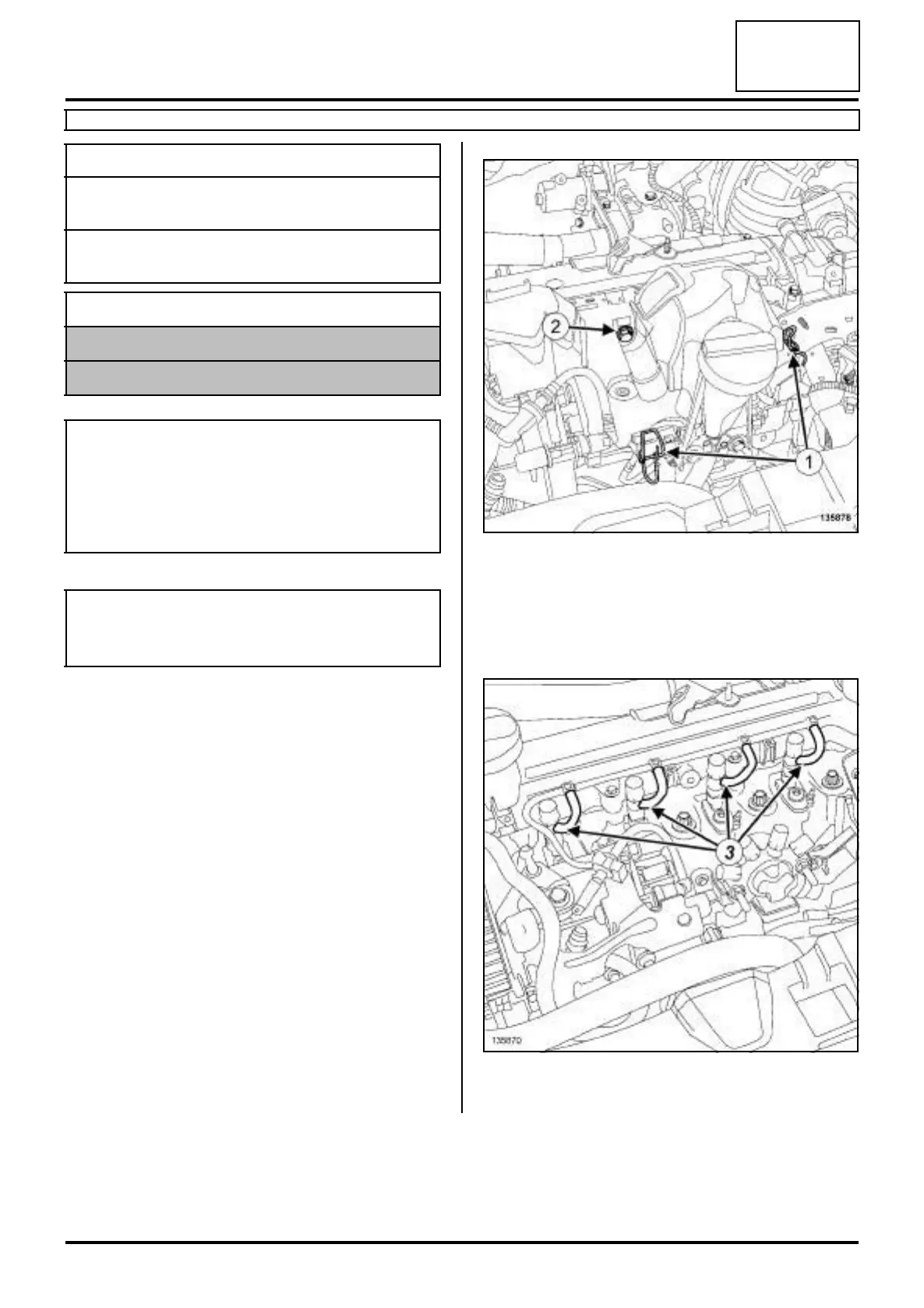

a Unclip the injector rail protector cover at (1) .
a Remove:
- the injector rail protector cover bolt (2) ,
- the injection rail protector cover,
a Disconnect the fuel return rail (3) from each diesel
injector.
Essential special tooling
Mot. 1771 Kit for measuring SIEMENS
injector leak rate.
Mot. 1711 Kit for measuring injector leak
rate.
Essential equipment
self-contained starter
diagnostic tool
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 13B, Diesel injection, Diesel injec-
tion: Precautions for repair, page 13B-1) .
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
135878
135870
