13B-133
DIESEL INJECTION
Leak flow from injectors: Check
K9K, and 834
13B

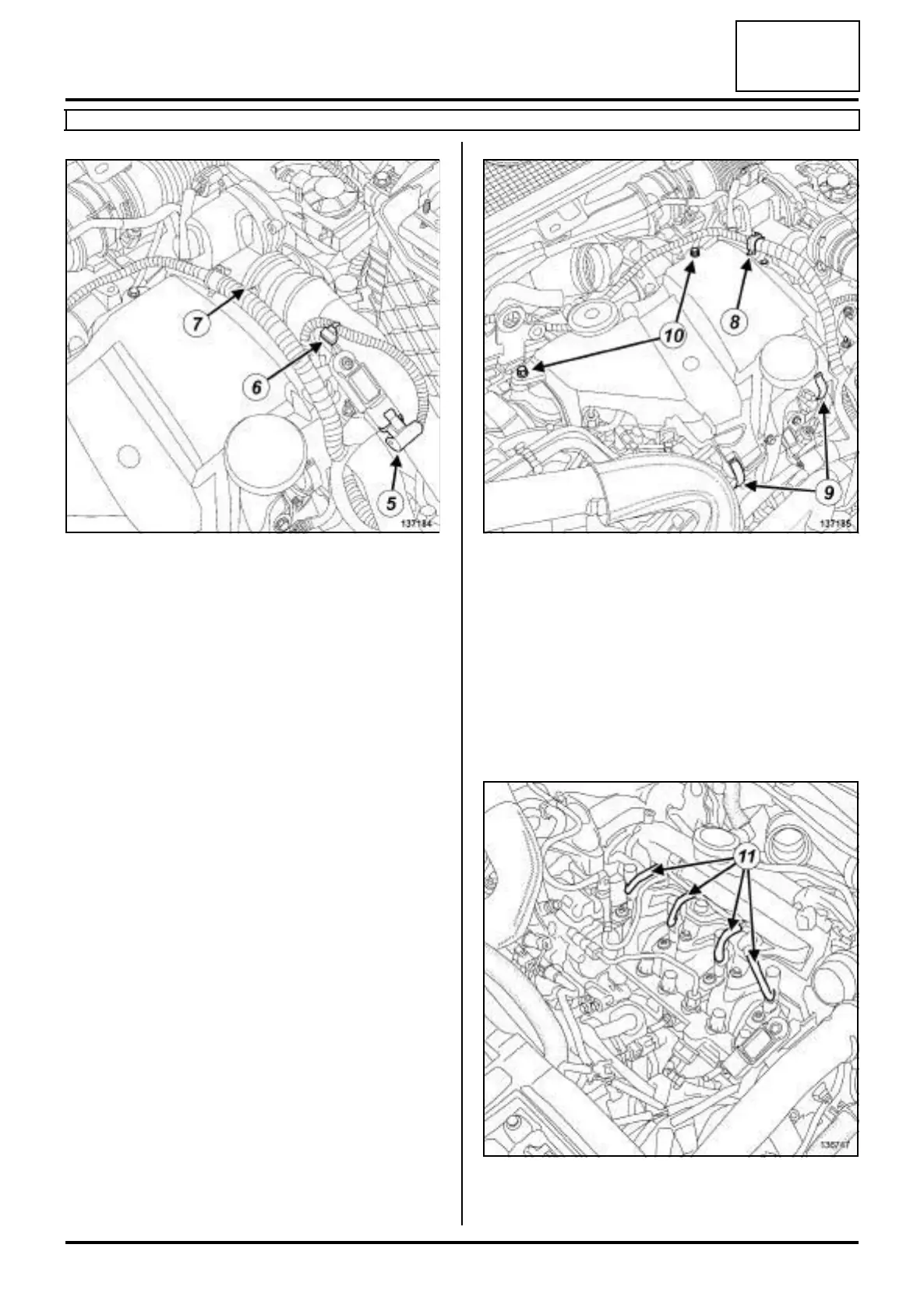

a Disconnect the turbocharger pressure sensor con-
nector (5) .
a Unclip the turbocharger pressure sensor cable (6)
from the intercooler air outlet pipe.
a Pull the clip (7) of the intercooler air outlet pipe.
a Move the intercooler outlet air pipe to one side.
a Unclip the damper valve wiring from the injector rail
protector at (8) .
a Unclip the injector rail protector cover at (9) .
a Remove:
- the bolts (10) from the injector rail protector cover,
- the injector rail protector.
a Disconnect the fuel return rail (11) from each diesel
injector.
137184 137185
136747
