13C-5
PREHEATING

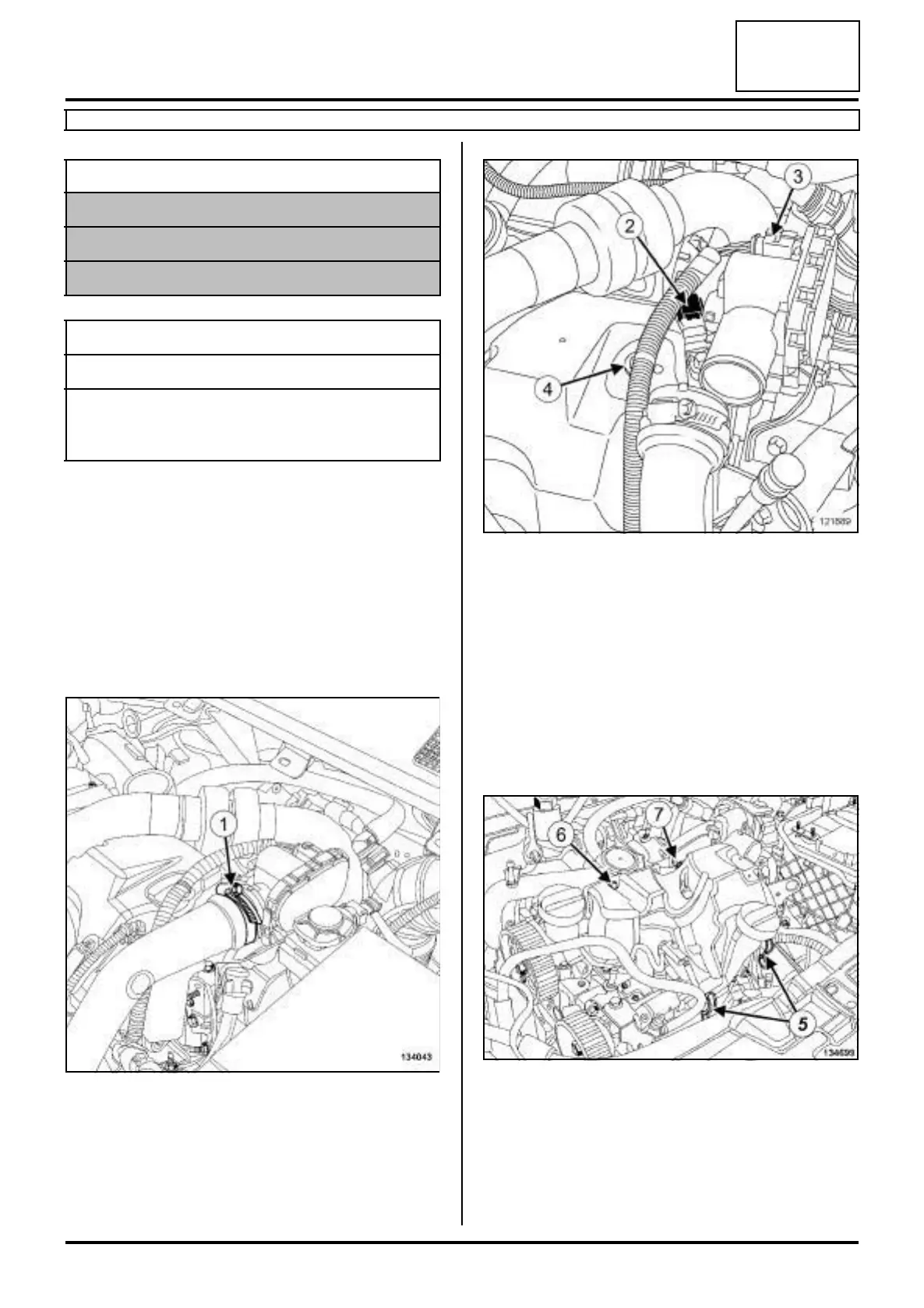

Heater plugs Removal - Refitting
K9K, and 832
13C
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove:
-the engine cover,
-the turbocharger air outlet pipe (see 12B, Turbo-
charging, Intercooler air inlet pipe: Removal -
Refitting, page 12B-41) .
a Loosen the clip (1) of the intercooler air outlet pipe
from the damper valve.
a Disconnect the intercooler outlet air pipe from the
damper valve.
a Move the intercooler outlet air pipe slightly away
from the damper valve.
a Disconnect:
- the connector (2) from the camshaft position sen-
sor,
- the damper valve connector (3) .
a Unclip the camshaft position sensor wiring and the
damper valve wiring (4) from the injector rail protec-
tor cover.
a Move aside the camshaft position sensor wiring and
damper valve wiring.
a Unclip the injector rail protector cover at (5) .
a Remove:
- the injector rail protector cover bolt (6) ,
- the injector rail protector cover nut (7) ,
- the injector rail protector cover,
Essential equipment
compressed air nozzle
tool for removing heater plugs
hinged wrench for heater plug
Tightening torquesm
heater plugs 15 N.m
intercooler air outlet
pipe clip on the damper
valve
5.5 N.m
134043
121889
134699
