The emergency spare wheel is located
underneath the vehicle.
– Open the tailgate;
– lift carpet 1 and place it against the
back of the rear bench seat;
– lift cover 2, then remove it;
– take out the tool kit, lifting it by both
handles 3.
Label A reminds you of how to op-
erate the emergency spare wheel
winch.
– unscrew nut 4 in an anti-clockwise
direction until it comes off com-
pletely, then place the palm of your
hand on section B of handle 5 and
push towards the front of the vehicle.
The wheel will be lowered.
When you push handle 5,
the wheel will drop under
the vehicle; risk of injury.
Ensure that everybody is
kept away from the underside of the
vehicle.
– pull the wheel towards you,
– lay the wheel down flat and unfasten
cable 6 from its housing 7;
– depending on the vehicle, remove
shim 8.
You may remove the wheel from its
support.
Do not touch the exhaust as
it could burn.

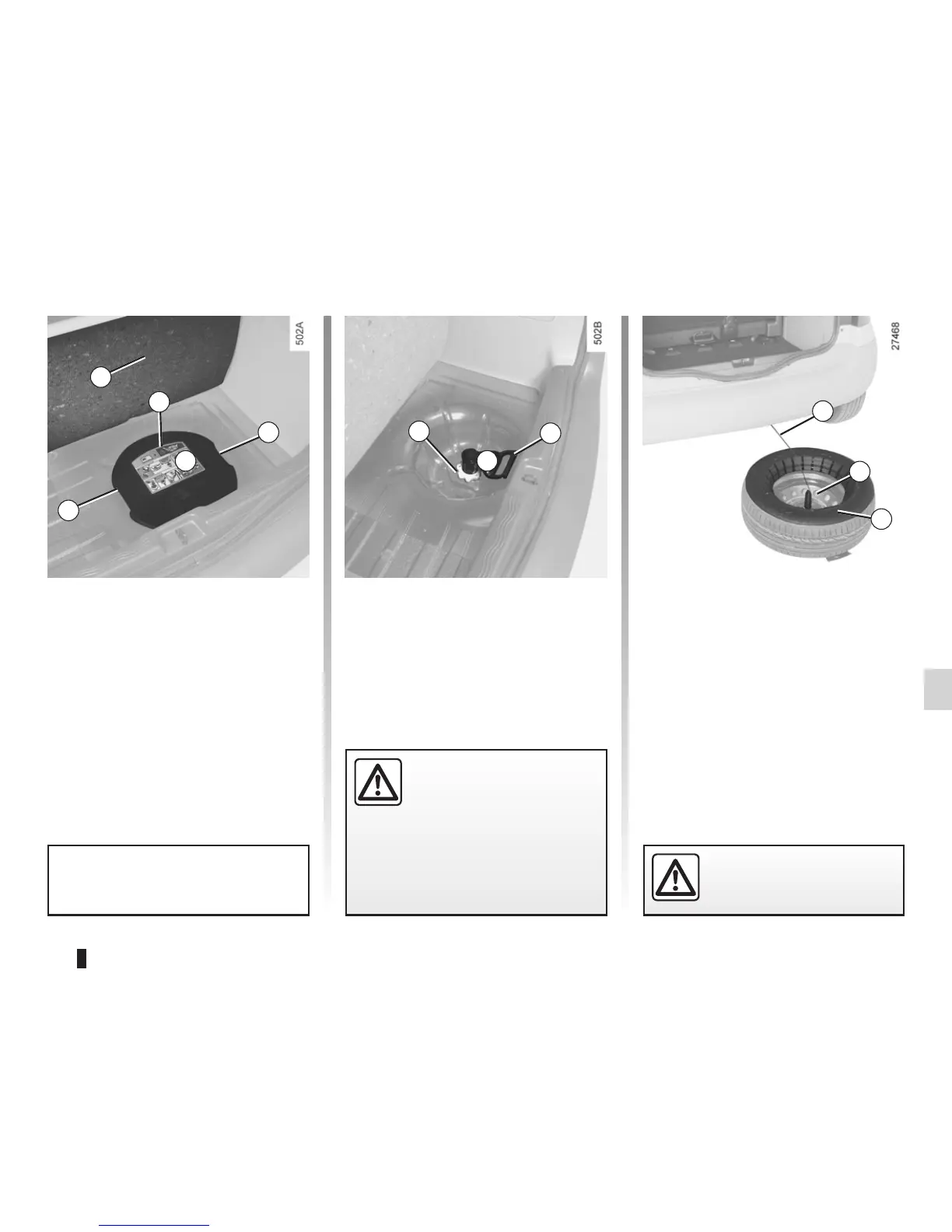

PUNCTURE, EMERGENCY SPARE WHEEL (2/4)
1
2
A
3
3
4
5
B
6
7
8
