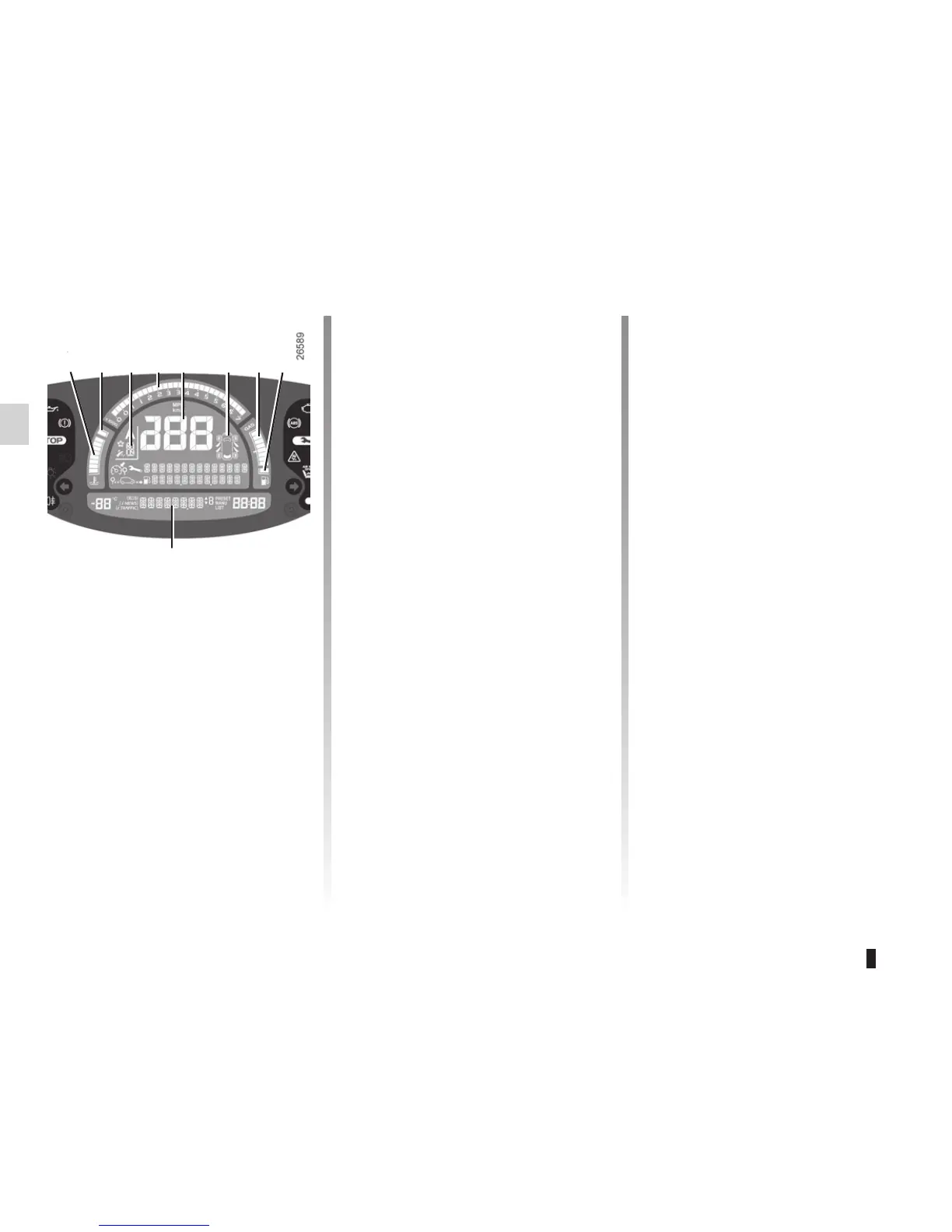

INSTRUMENT PANEL: displays and indicators
Rev counter 3
(scale x 1 000)
The red zone indicates a prohibited
engine speed
Speedometer 4 (mph or km/h)
Overspeed buzzer
Depending on the vehicle, a buzzer
sounds for approximately 10 seconds
every 40 seconds, as long as the ve-
hicle is travelling in excess of 72 mph
(120 km/h).
Display 5
It lights up to indicate that a door or the
tailgate is open or not properly closed
(refer to the information on the “Tyre
pressure monitor” in Section 2).
Coolant temperature indicator 1
In normal use, the needle should be
below the area marked 1a. Under
severe conditions, the needle may
enter this area.
This is not serious unless the
®
warning light comes on, accompanied
by a message on the instrument panel
and a beep.
Gear engaged indicator 2 (for vehi-
cles with an automatic gearbox).
1 1a
Fuel gauge 6
The number of squares lit shows the
fuel level.
Minimum fuel level warning 6a
If it flashes and a beep sounds, this in-
dicates that the minimum fuel level has
been reached. Fill up with fuel as soon
as soon as possible.
Each time the ignition is switched on
when the minimum fuel level has been
reached, a beep sounds to warn you.
Engine oil level low warning 7
The display informs the driver that the
engine oil level is low when the engine
is started. This warning lasts for 15 sec-
onds. Refer to the information on the
“Engine oil level” in Section 4.
Trip computer and warning system
After 15 seconds, the display switches
to the trip computer function. Refer to
the information on the “Trip computer
and warning system” in the following
pages.
2 3 4 5 6 6a
7
