Renesas RA Family Getting Started with Low Power Applications for RA6 and
RA4 Groups
R11AN0471EU0104 Rev.1.04 Page 14 of 40
Oct.1.21

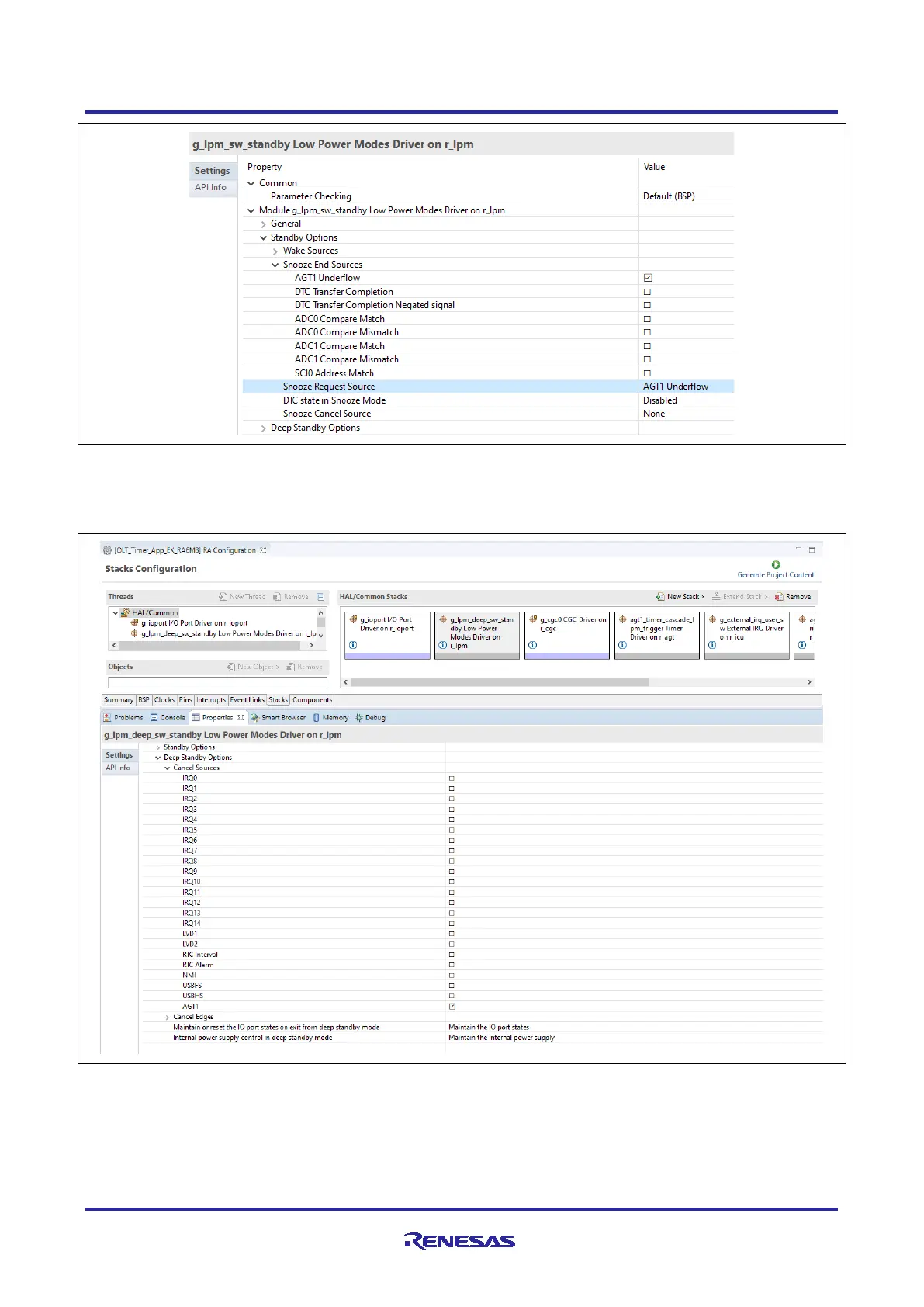

Figure 9. Snooze Properties Configuration using the Properties Tab
3.3.1.5 Deep Software Standby Configuration
Figure 10 shows Deep Software Standby Mode with AGT1 underflow interrupt as cancel source.
Figure 10. Deep Software Standby Properties Configuration using the Properties Tab
If IRQ is used to cancel the Deep Software Standby mode, you need to use the IRQn-DS interrupts.
In Deep Software Standby mode, the Internal power supply control in Deep Software Standby mode
provides an option to maintain the internal power supply to the peripherals or cut down the internal power
