The following figures show the configurations of AGT0 and AGT1. The count source of AGT0 is the Sub-
Clock, which is available in Low Power modes, and the count source for AGT1 is the AGT0 underflow
interrupt.
Figure 13 shows AGT0 configured in a periodic mode that generates underflow interrupt every second.

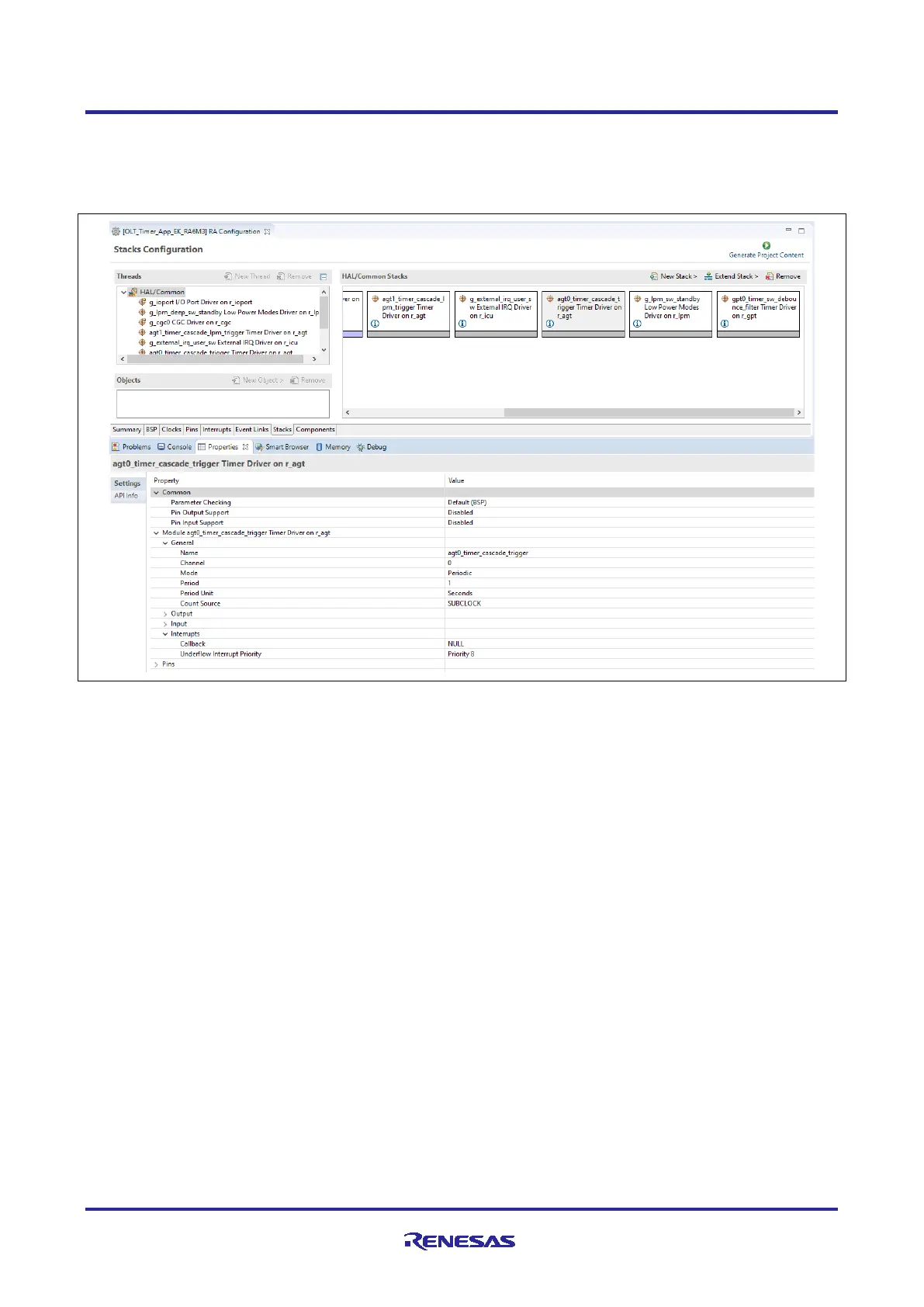

Figure 13. AGT0 Properties Configuration using the Properties Tab
AGT1 is also configured in a periodic mode with raw count as the period unit shown in Figure 14.
