Renesas RA Family Getting Started with Low Power Applications for RA6 and
RA4 Groups
R11AN0471EU0104 Rev.1.04 Page 35 of 40
Oct.1.21
Create a new pin configuration file named RA6M2-EK-LPM.pincfg in the same project folder by using
Manage configuration, duplicating RA6M2-EK.pincfg and renaming it to RA6M2-EK.pincfg.

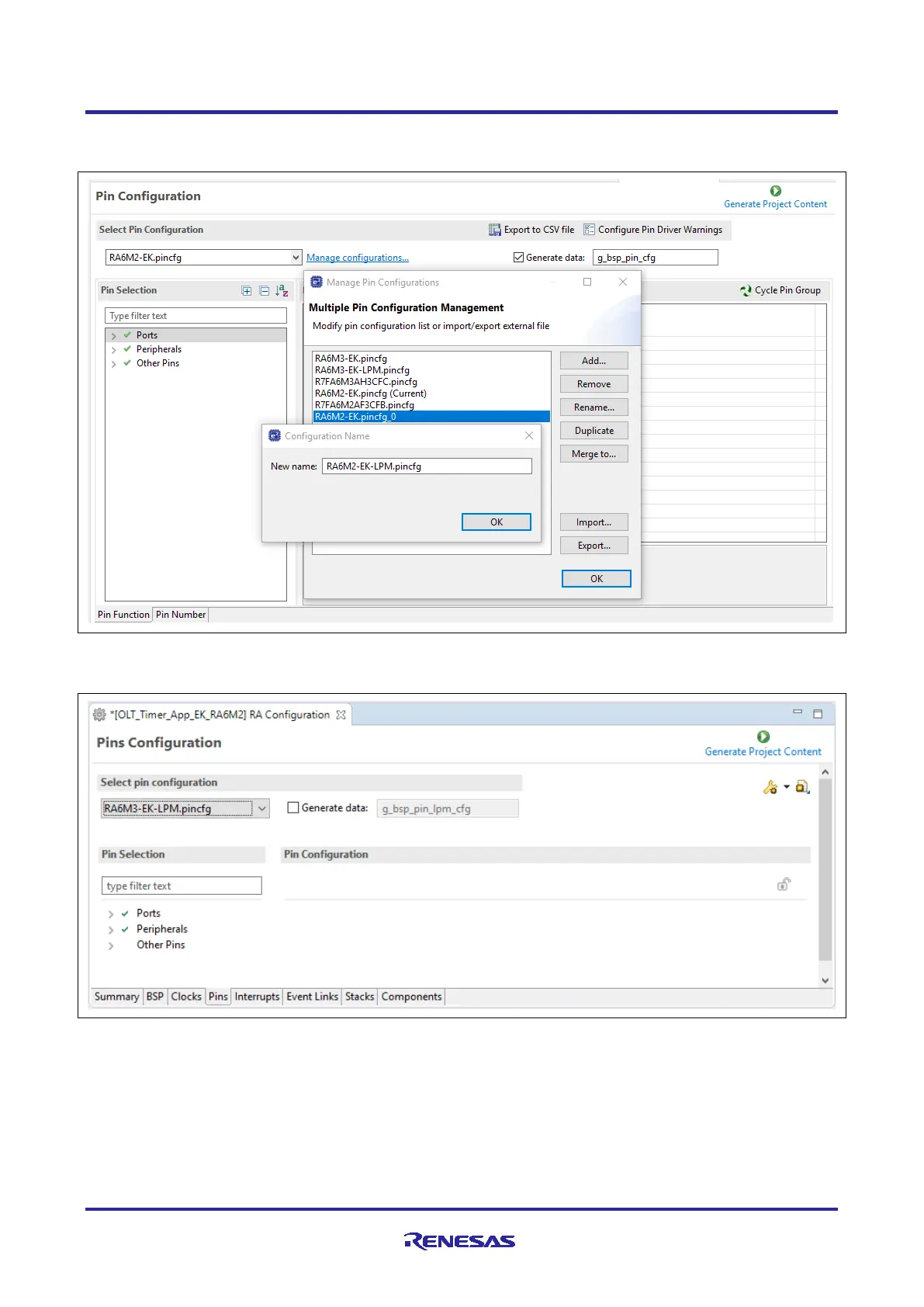

Figure 35. Create a New Pin Configuration
Select the RA6M3-EK-LPM.pincfg and uncheck the Generate Data box to deselect the old pin configuration.
Figure 36. Deselect the Old LPM Pin Configuration
Select the newly created RA6M2-EK-LPM.pincfg and check the Generate Data box. You can disable
unused pins and peripherals and generate the pin configuration for LPM, for example, disabling SCI7 as
shown in Figure 37.
