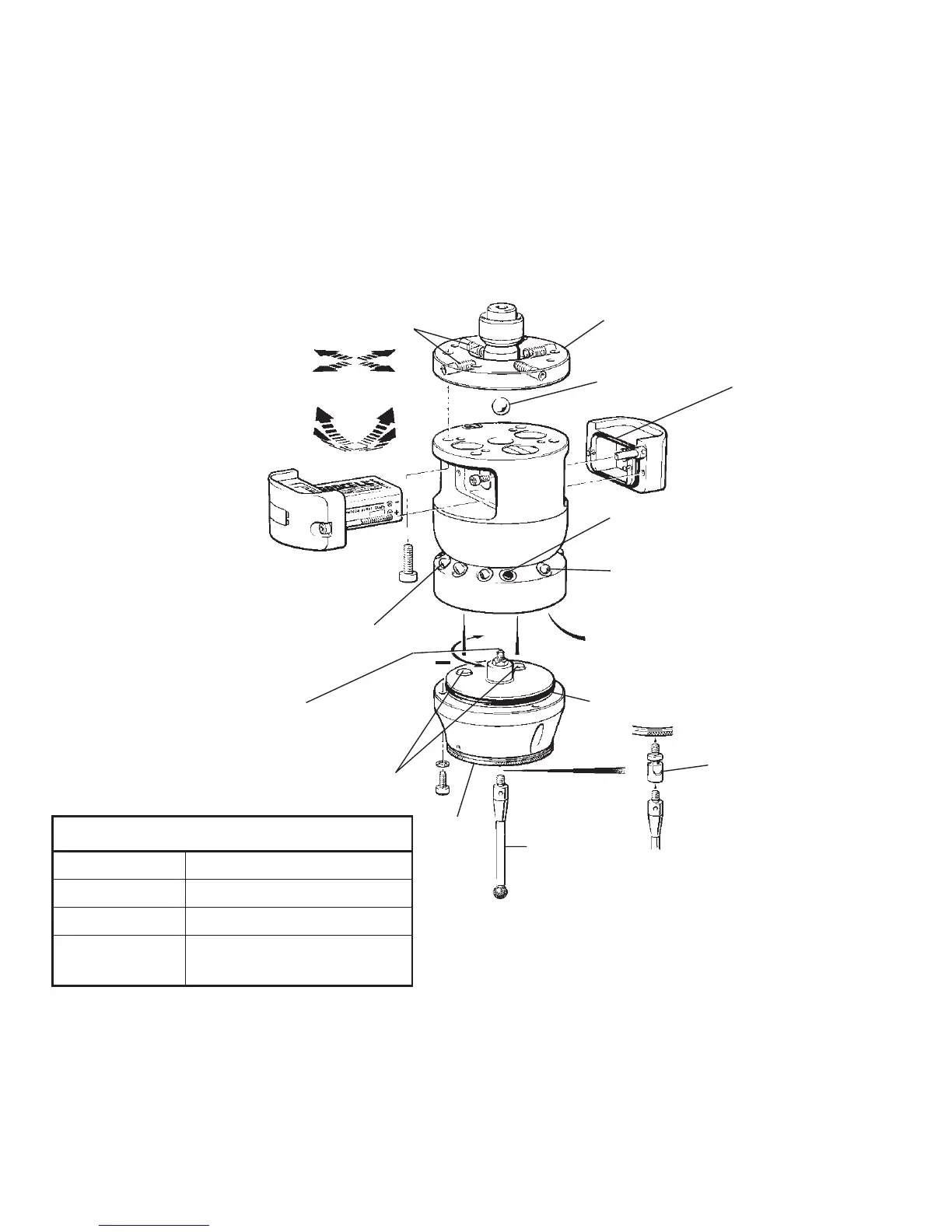

MP10 FEATURES
COLLISION PROTECTION
optional
A weak link is fitted between the
probe and stylus, to protect the
probe in the event of excessive
stylus overtravel.
Battery cover
Battery
cover seal
Stylus spring
pressure adjustment
Probe setting switch and
enhanced trigger circuit
6 x Transmit LED (Tx)
natural colour - clear
3 x Receive diode (Rx)
natural colour - black
On-centre
adjusting plate
Ø8 mm Ball
(optional)
OMP
(optical module probe)
1 x Probe status LED
red/green
natural colour - white
Align head contacts
with OMP contacts
Probe
head
'O' Ring
Weak link
Stylus
+
Translation
screw adjusters
Probe status
Stylus seated.
Stylus deflected (triggered).
LED colour
Flashing GREEN
Flashing RED
Constant RED
Probe status LED
Battery dead.
(replace battery to continue).
