Renishaw MP10 - Probe;Shank Mounting

Adjusting plate
1-17
Note :
1. DURING ADJUSTMENT CARE
SHOULD BE TAKEN NOT TO
ROTATE THE PROBE RELATIVE
TO THE SHANK.
2. IF A PROBE/SHANK UNIT IS
ACCIDENTALLY DROPPED, IT
SHOULD BE CHECKED FOR
ON-CENTRE POSITION.
3. DO NOT HIT OR TAP THE PROBE
TO ACHIEVE ON-CENTRE
ADJUSTMENT.
Stage 1 Probe/shank mounting
1. Remove battery covers and battery
- see page 1-13.
2. Tighten probe/adjusting plate screws A
to 5.1 Nm (3.76 lbf.ft) using special
4 mm AF hexagon key (supplied in tool kit).
3. Fully slacken four screws B.
4. Grease two screws C, and fit into shank.
5. Fit probe onto the shank, and visually
position the probe centrally relative to
the shank.
Partially tighten screws C to
2 - 3 Nm (1.47 - 2.2 lbf.ft).
6. Mount the probe/shank assembly into
machine spindle.

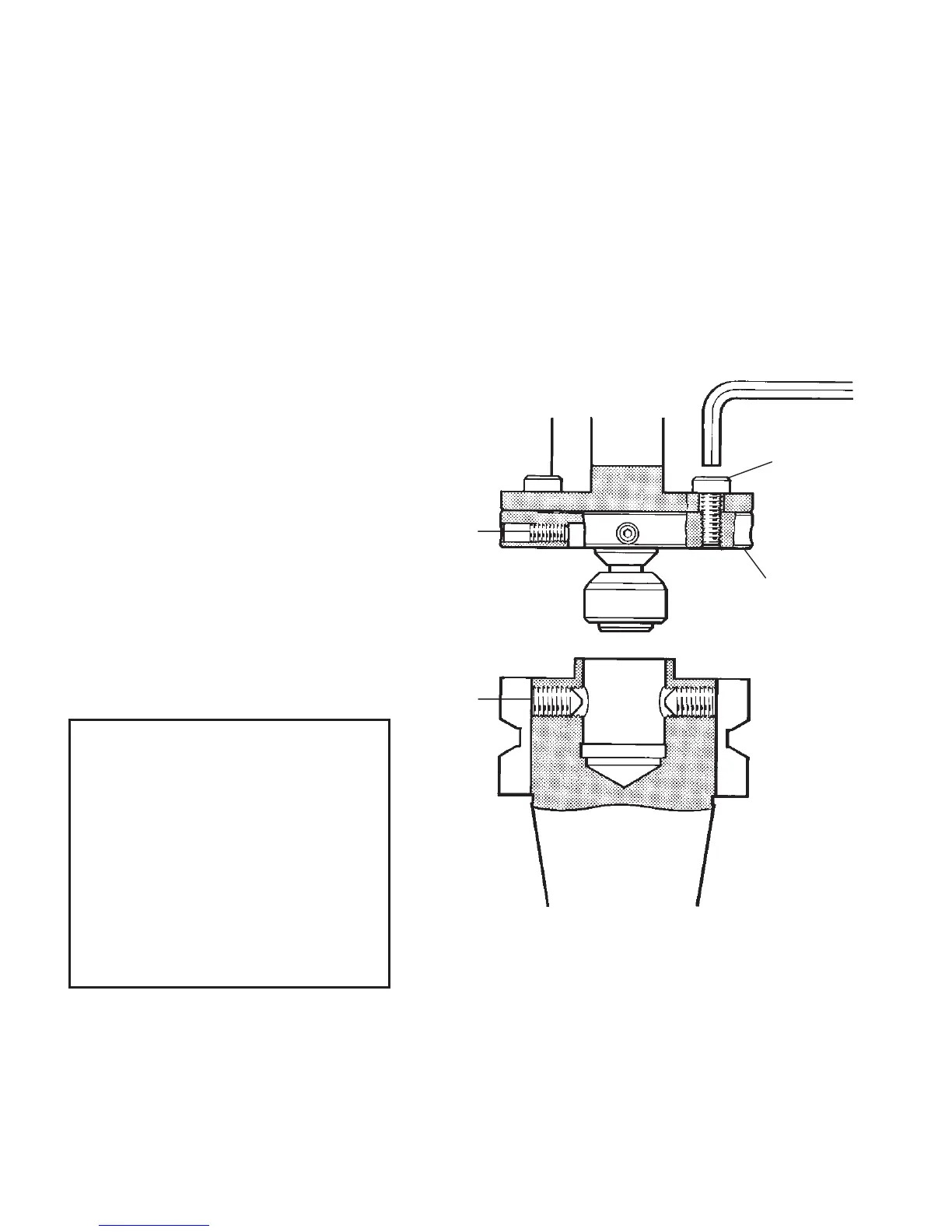

PROBE/SHANK MOUNTING WITH ADJUSTING PLATE
SHANK
A
B
C
Special 4 mm AF
short arm
hexagon key
PROBE
