Renishaw MP10 - Appendix 1; ADAPTOR and EXTENSIONS

EXTENSION HOUSING
Extension housings allow deeper
access into workpiece features.
Extension housings fit between
the OMP and probe head.
ADAPTOR + EXTENSION BAR
Features with restricted access
can be probed using an LP2
probe.
The MA6 adaptor allows an LP2
probe to be used in place of the
MP10 probe head, which is
removed and replaced with an
MA6 + LP2.
Further reach is obtained by
adding an LPE extension
between the MA6 adaptor and
LP2 probe.

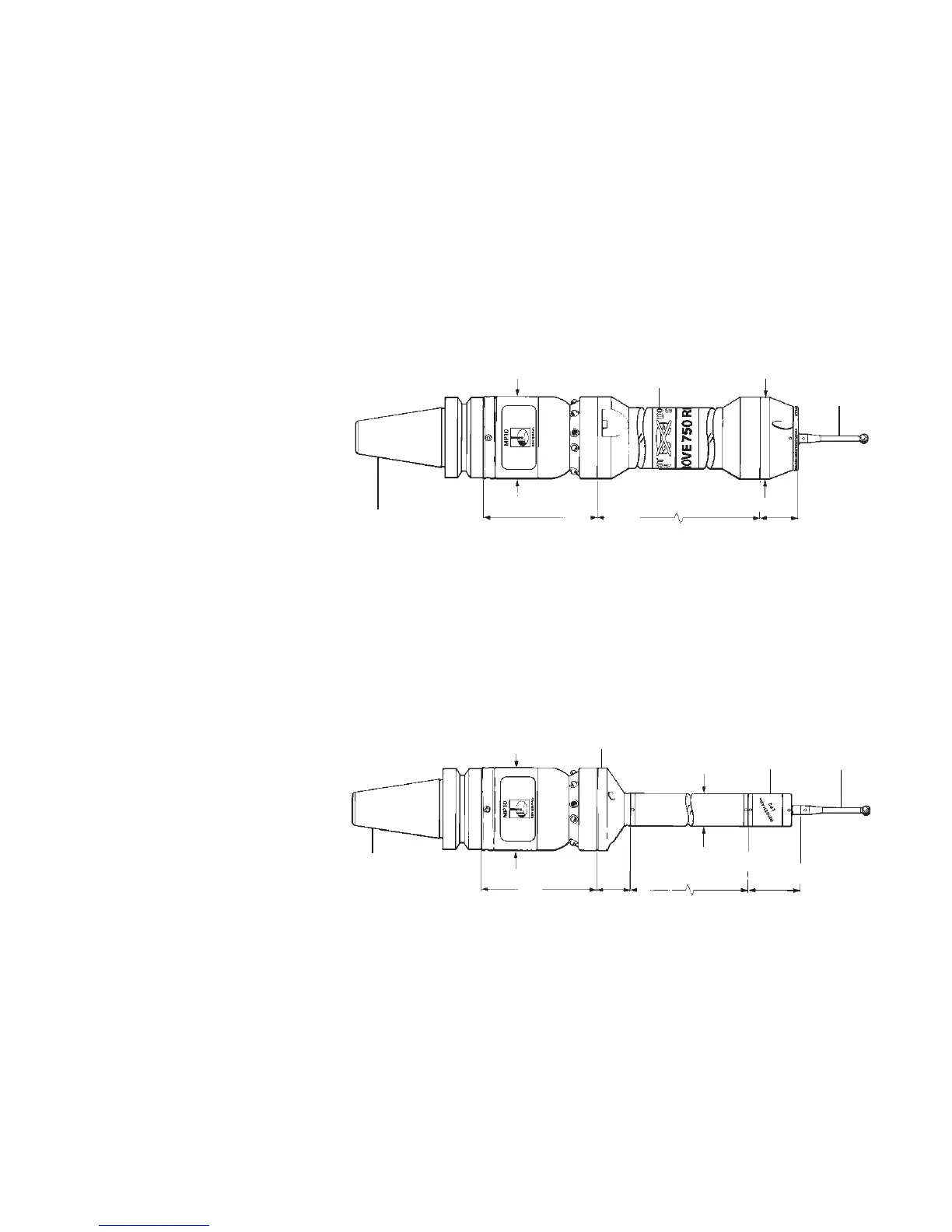

Probe head
Ø62 (2.44)
MPE
extension
housing
OMP
Ø62 (2.44)
Stylus
Shank
APPENDIX 1
ADAPTOR AND EXTENSIONS
A maximum of one extension housing or extension bar is permitted per installation
1-37
35° OMP 87.9 (3.46)
70° OMP 87.4 (3.44)
30
(1.18)
MPE1 100 (3.94)
MPE2 150 (5.90)
MPE3 200 (7.87)
dimensions mm (in)
MP10 probe head replaced with
MA6 adaptor + LPE extension + LP2 probe
LP2 probe
Stylus
MA6
adaptor
Shank
LPE
extension bar
Ø25 (0.98)
OMP
Ø62 (2.44)
40.8
(1.6)
LPE1 50 (1.96)
LPE2 100 (3.94)
LPE3 150 (5.90)
25
(0.98)
35° OMP 87.9 (3.46)
70° OMP 87.4 (3.44)
