11
Lightly
grease
here

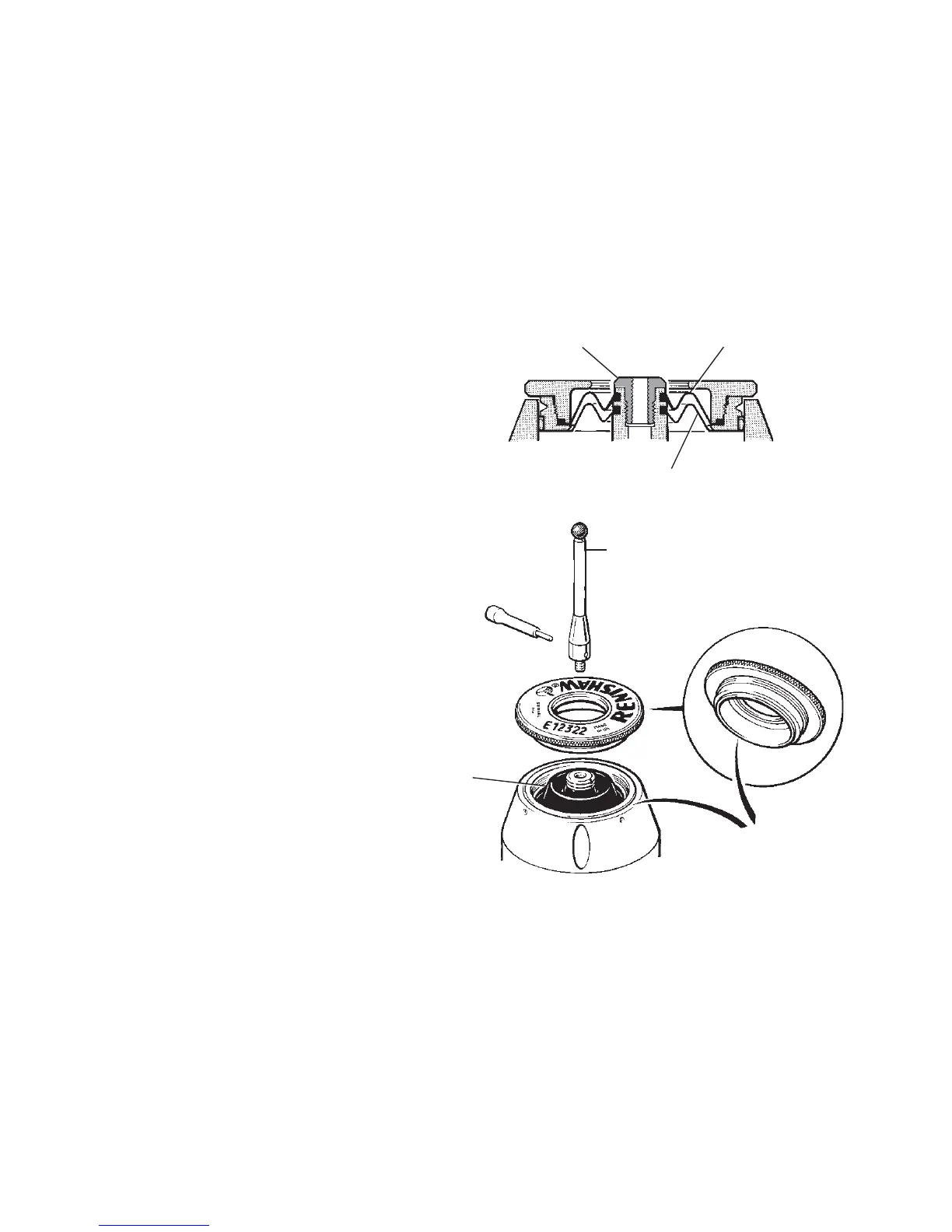

STYLUS HOLDER
OUTER DIAPHRAGM
INNER DIAPHRAGM
STYLUS
TOOL
STYLUS 1 12
2
PROBE DIAPHRAGMS
The probe mechanism is protected
from coolant and debris by two
diaphragms. These provide adequate
protection under normal working
conditions.
The user should periodically check the
outer diaphragm, for signs of damage
and coolant leakage. If this is evident
replace the outer diaphragm.
The outer diaphragm is resistant to
coolant and oils. However, if the outer
diaphragm is damaged, the inner
diaphragm could become weakened
with prolonged immersion in certain
coolants and oils.
The user must not remove the inner
diaphragm. If damaged, return the
probe to your supplier for repair.
WARNING: NEVER ATTEMPT TO REMOVE DIAPHRAGM WITH METAL OBJECTS
1-30
DIAPHRAGM INSPECTION
3
