OUTER DIAPHRAGM INSPECTION
1. Remove the stylus.
2. Unscrew the front cover.
3. Inspect outer diaphragm for
damage.

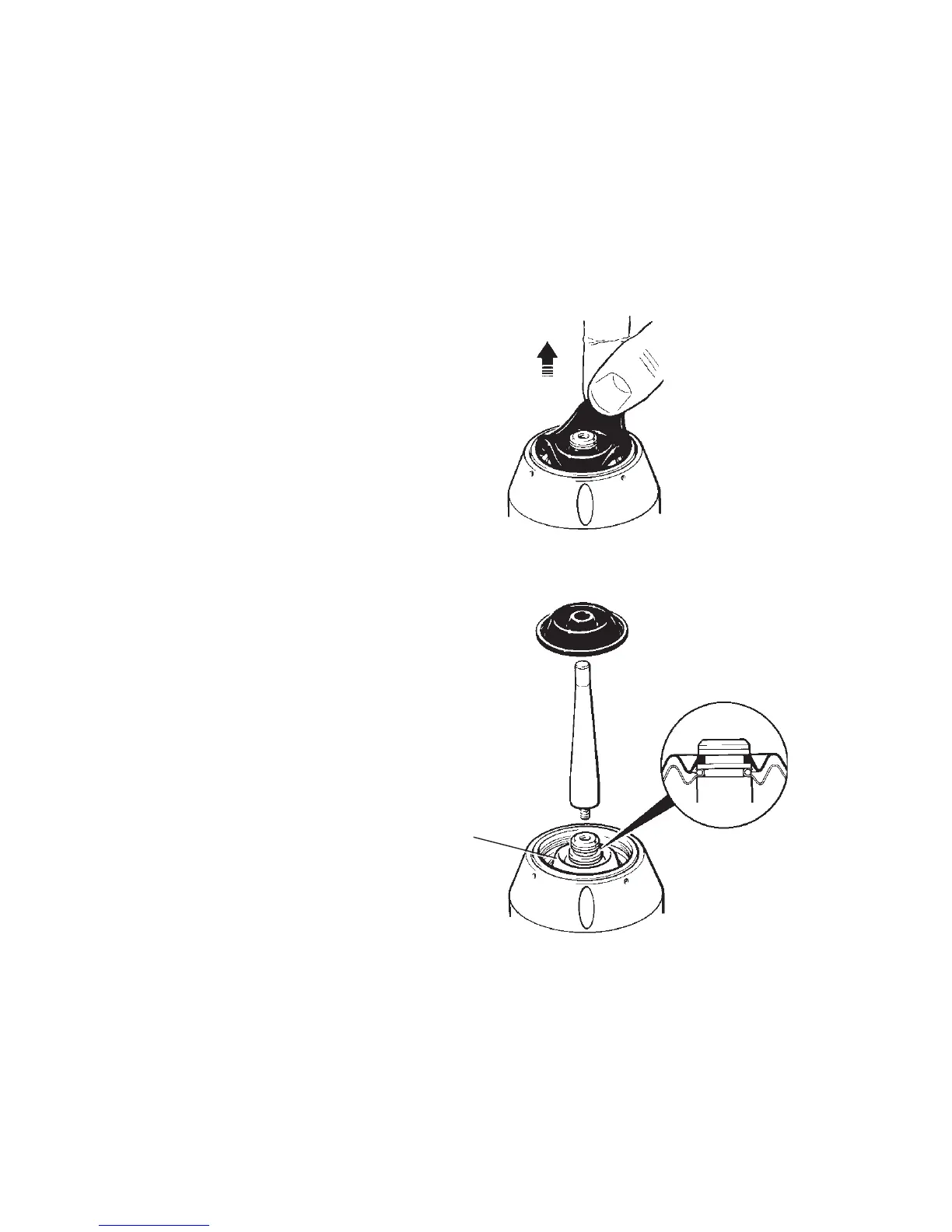

4. To remove outer diaphragm, grip
near the middle and pull upwards.
INNER DIAPHRAGM INSPECTION
5. Inspect inner diaphragm for
damage.
If damaged return the probe to
your supplier for repair.
WARNING: DO NOT REMOVE INNER DIAPHRAGM.
OUTER DIAPHRAGM REPLACEMENT
6. Screw tool fully into stylus holder.
7. Fit new diaphragm.
8. The diaphragm must locate centrally in the
stylus holder groove.
9. Press diaphragm to expel
trapped air.
10. Remove tool.
11. Lightly smear medium grease on
front cover lower surface, then refit cover
and tighten.
12. Refit stylus.
4
7 9
6 10
5
8
1-31
