WEAK LINK FOR STYLI WITH STEEL SHAFT - optional
In the event of excessive stylus overtravel the weak link stem is
designed to break, thereby protecting the probe from damage.
THE PROBE IS A PRECISION TOOL HANDLE WITH CARE
ENSURE THE PROBE IS FIRMLY SECURED IN ITS MOUNTING
Although Renishaw probes require little maintenance, their performance
will be adversely affected if dirt, chips or liquids are allowed to enter the sealed
working parts. Therefore keep all components clean and free from grease and oil.
Periodically check cables for signs of damage, corrosion or loose connections.
SERVICE AND MAINTENANCE
1-29

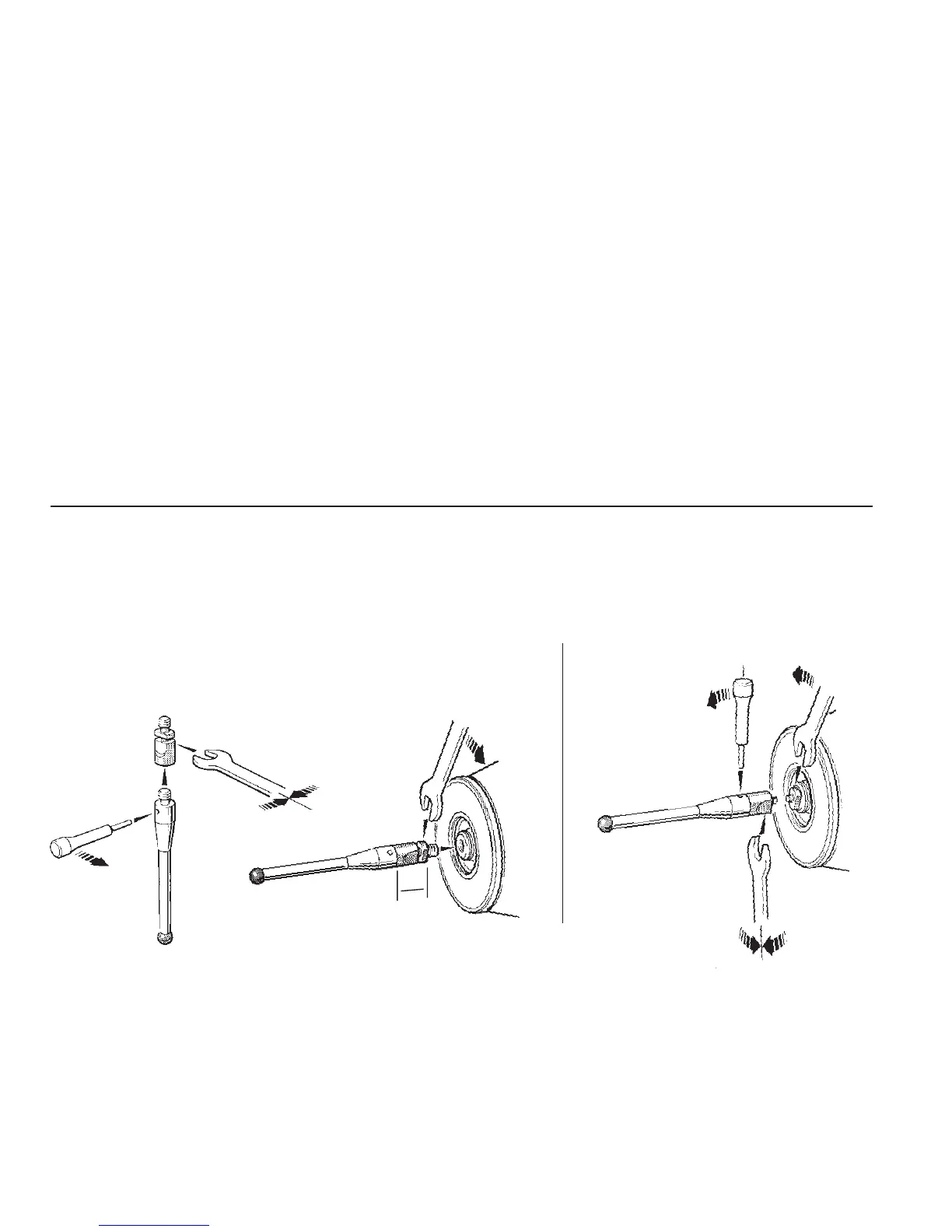

To remove a broken stem
Note: THE WEAK LINK IS NOT USED WITH CERAMIC SHAFT STYLI
12 mm
(0.47 in)
Fitting stylus with weak link onto probe
Take care to avoid stressing the weak link
during assembly - see page 1-32
➤
➤
