Renishaw MP10 - Page 37

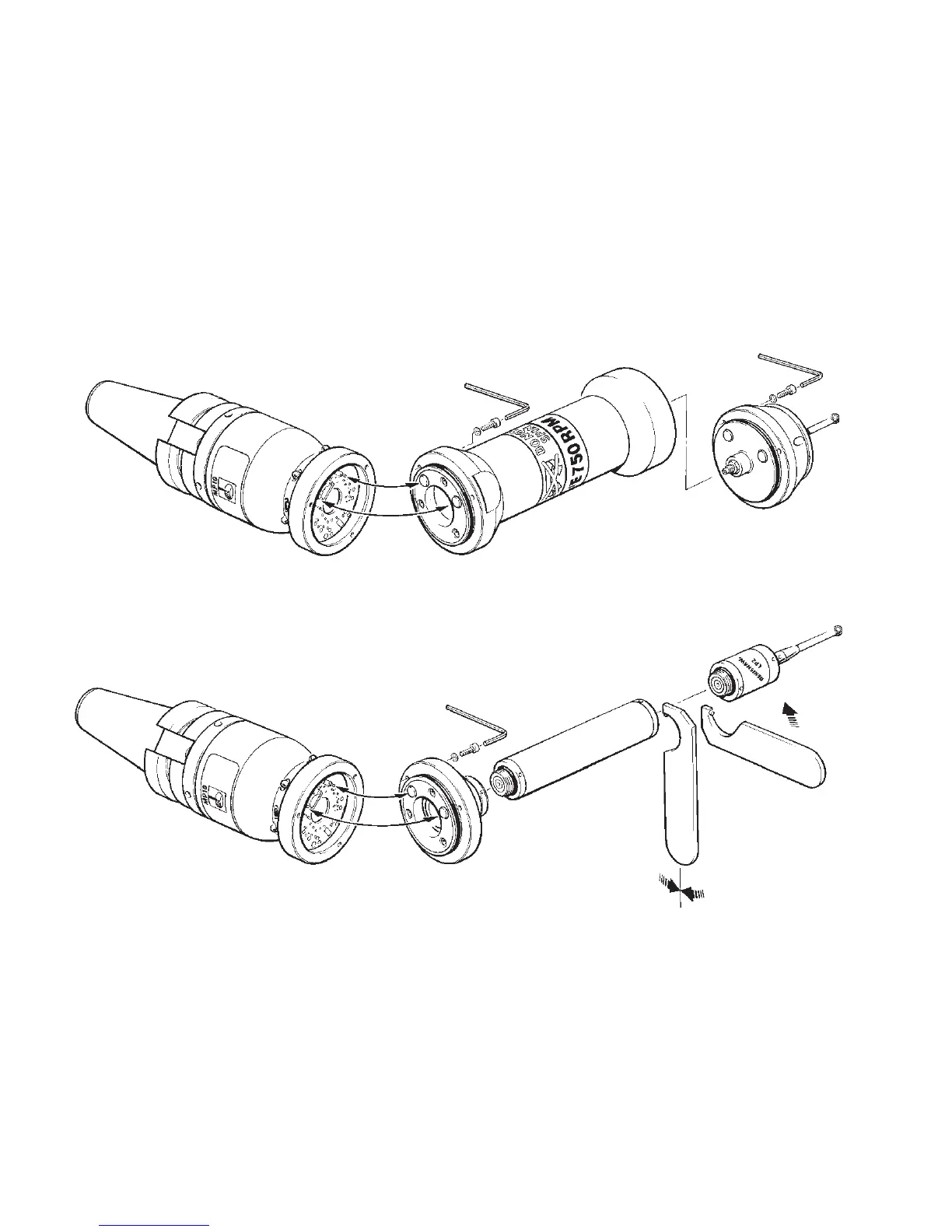

Align electrical
contacts
Align electrical
contacts
C spanner
normal
10-12 Nm
(7.37-8.84 lbf.ft)
maximum
20 Nm (14.74 lbf.ft)
Automatic
electrical
connection
Align electrical
contacts
HOLD
LPE
extension
Bar
M16
thread
SCREW TORQUE VALUES - Nm (lbf.ft)
MP10
probe head
LP2 probe
Shank
OMP
MA6
adaptor
Shank
OMP
MPE
extension
housing
2.5 mm AF
1.5 Nm
(1.10 lbf.ft)
2.5 mm AF
1.5 Nm
(1.10 lbf.ft)
2.5 mm AF
1.5 Nm
(1.10 lbf.ft)
1-33
