2.5
OMP40-2 basics

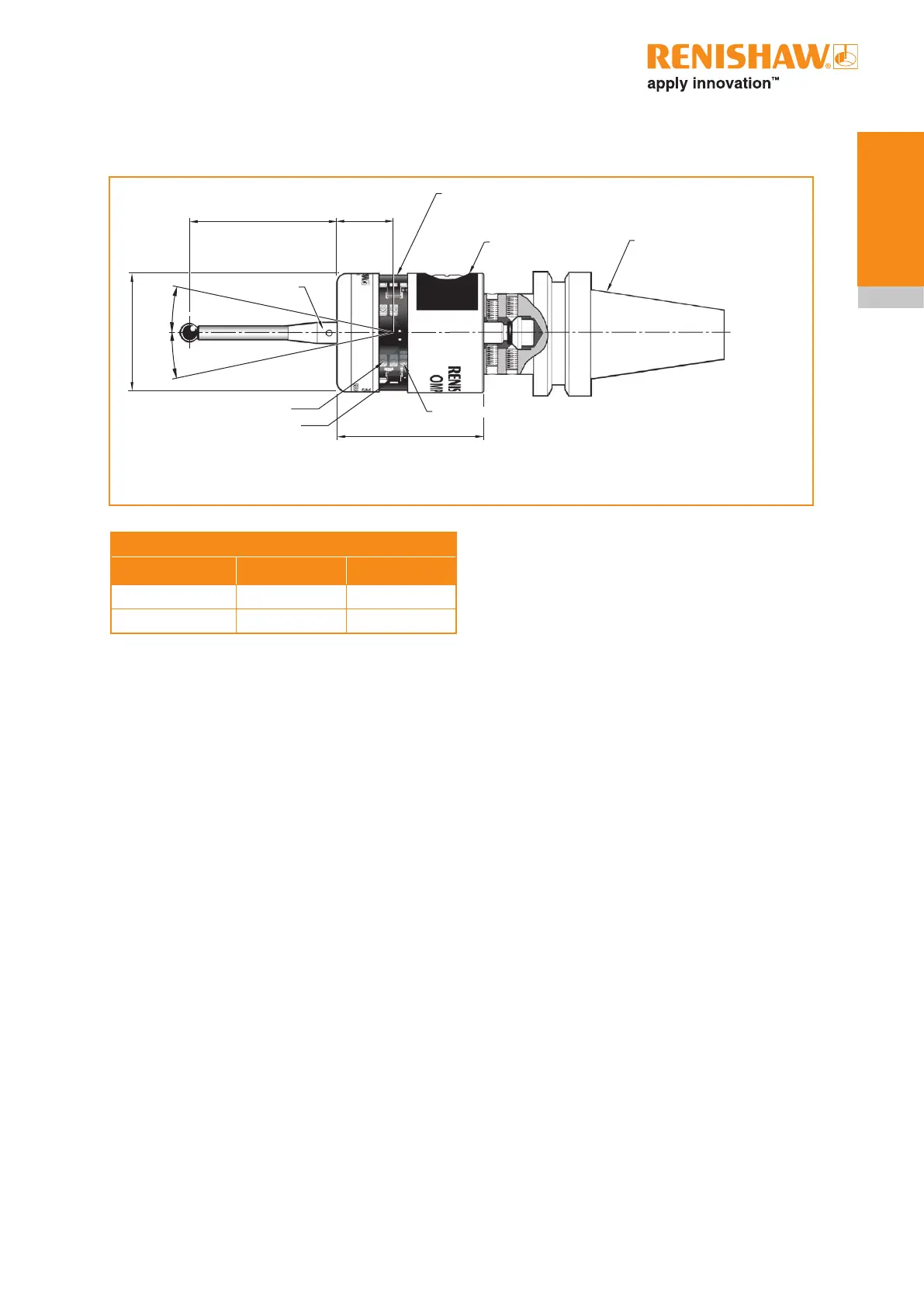

OMP40-2 dimensions
Stylus overtravel limits
Stylus length ±X/±Y +Z
50 (1.97) 12 (0.47) 6 (0.24)
100 (3.94) 22 (0.87) 6 (0.24)
Dimensions given in mm (in)
50 (1.97)
19 (0.75)
12.5°
12.5°
50 (1.97)
Ø40 (1.57)
A range of probe-ready shanks
is available from Renishaw
Battery cassette
Window
M4 stylus
XY overtravel
Transmit diode
Receive diode
Probe status LED
