Trigger Logic
Operating mode
NOTE: Due to the nature of lithium-thionyl
chloride batteries, if a “low battery” LED warning is
ignored, it is possible for the following sequence of
events to occur:
1. When the probe is active, the batteries
discharge until battery power becomes too
low for the probe to operate correctly.
2. The probe stops functioning, but then
reactivates as the batteries recover
sufficiently to provide the probe with power.
3. The probe begins to run through the LED
review sequence (see “Reviewing the probe
settings” in Section 4, “Trigger Logic™”).

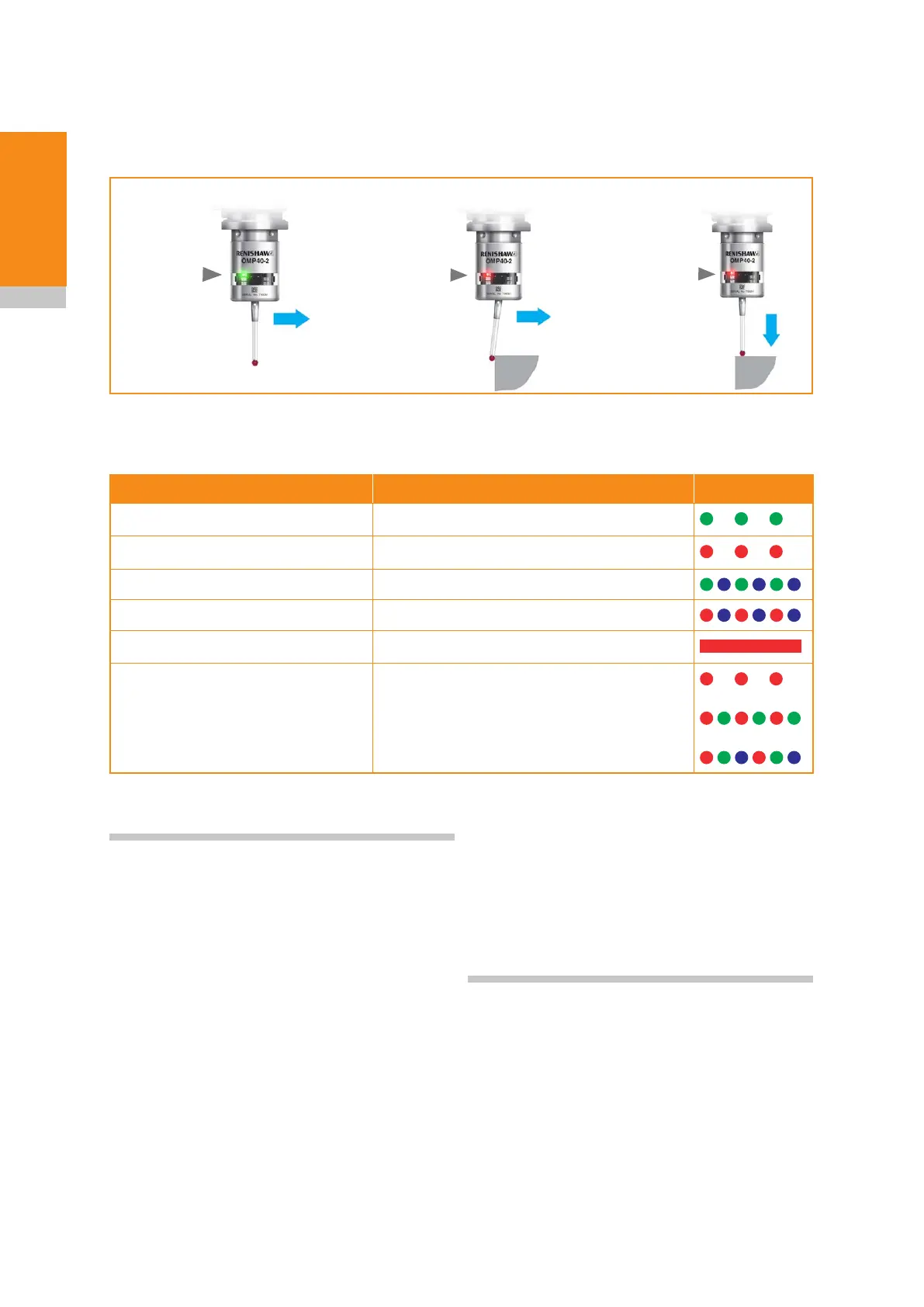

LED colour Probe status Graphic hint
Flashing green Probe seated in operating mode
Flashing red Probe triggered in operating mode
Flashing green and blue Probe seated in operating mode – low battery
Flashing red and blue Probe triggered in operating mode – low battery
Constant red Battery dead
Flashing red
or
Flashing red and green
or
Sequence when batteries are inserted
Unsuitable batteries
LEDs
flashing
green
LEDs
flashing
red
LEDs
flashing
red
X/Y
Z
Probe status LEDs
4. Again, the batteries discharge and the probe
ceases to function.
5. Again, the batteries recover sufficiently
to provide the probe with power, and the
sequence repeats itself.
