Renishaw OMP40-2 - System Installation; Installing OMP40-2 with OMM-2;OMI-2

3.1
Installing the OMP40-2 with an OMM-2 / OMI-2T / OMI-2H / OMI-2 /
OMI / OMM
Operating envelope
The OMP40-2 / OMI / OMM with MI 12 system
uses legacy transmission. The OMP40-2 / OMM-2
with OSI / OMI-2T / OMI-2H / OMI-2 system uses
modulated transmission.
Natural reflective surfaces within the machine may
increase the signal transmission range.
Coolant and swarf residue accumulating on the
probe or receiver/interface windows will have a
detrimental effect on transmission performance.
Wipe clean as often as necessary to maintain
unrestricted transmission.
CAUTION: If two or more systems are operating
in close proximity to each other, take care to
ensure that signals transmitted from the OMP40-2
on one machine are not received by the receiver
on the other machine, and vice versa. When this
is the case it is recommended that the OMP40-2
low optical power is used and that the low range
setting is used on the receiver.

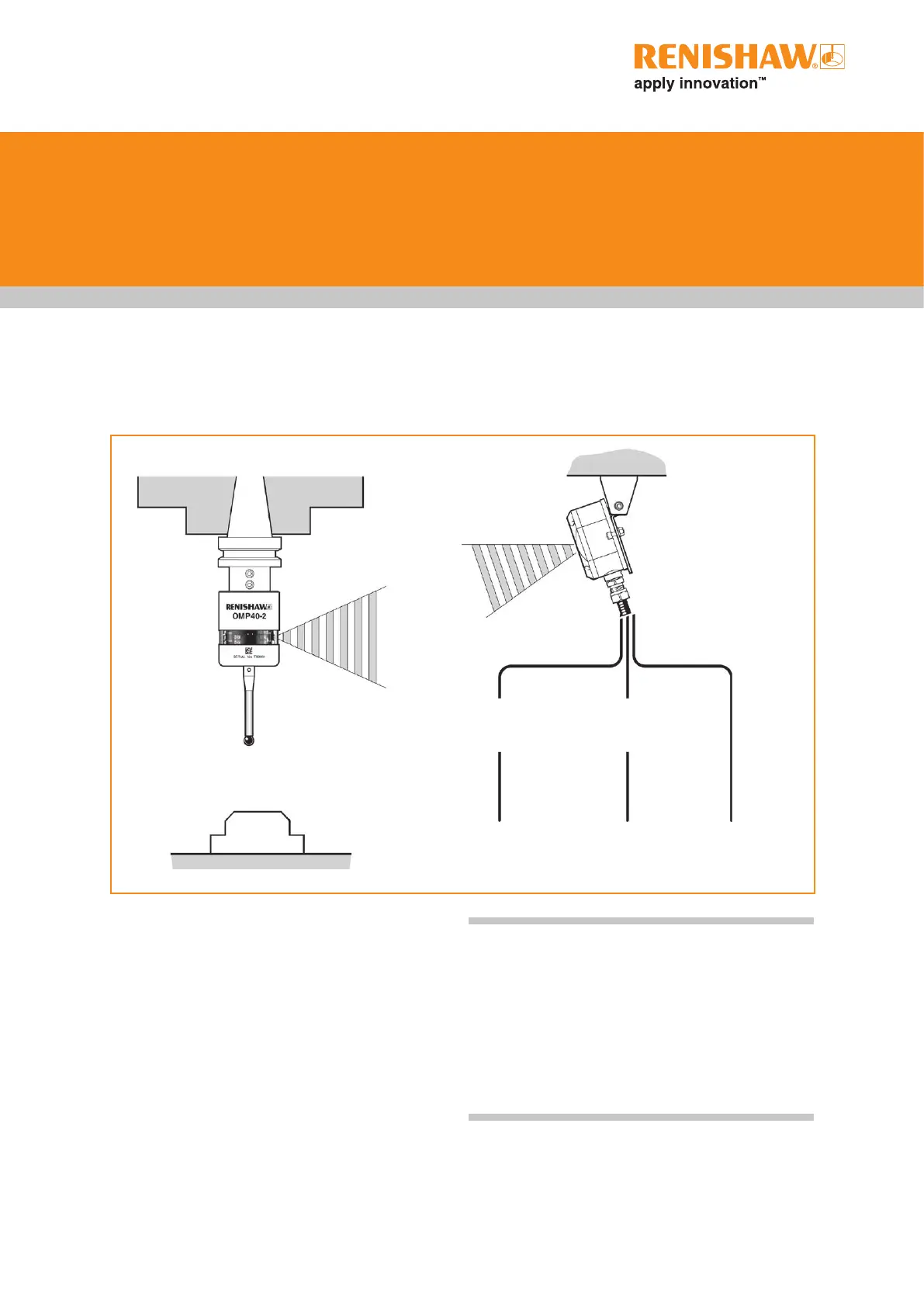

System installation
OMP40-2 probe
MI 12 interface unit or
MI 12-B
OMM
Workpiece
CNC machine
control
OMI / OMI-2 / OMI-2T /
OMI-2H
OMM-2
OSI
interface unit
CNC machine
control
CNC machine
control
