OMP40-2 installation guide
3.4
System
installation
Stylus weak link
NOTE:
Must be used with steel styli. For optimum
metrology performance do not use a weak link
with ceramic or carbon fibre styli.

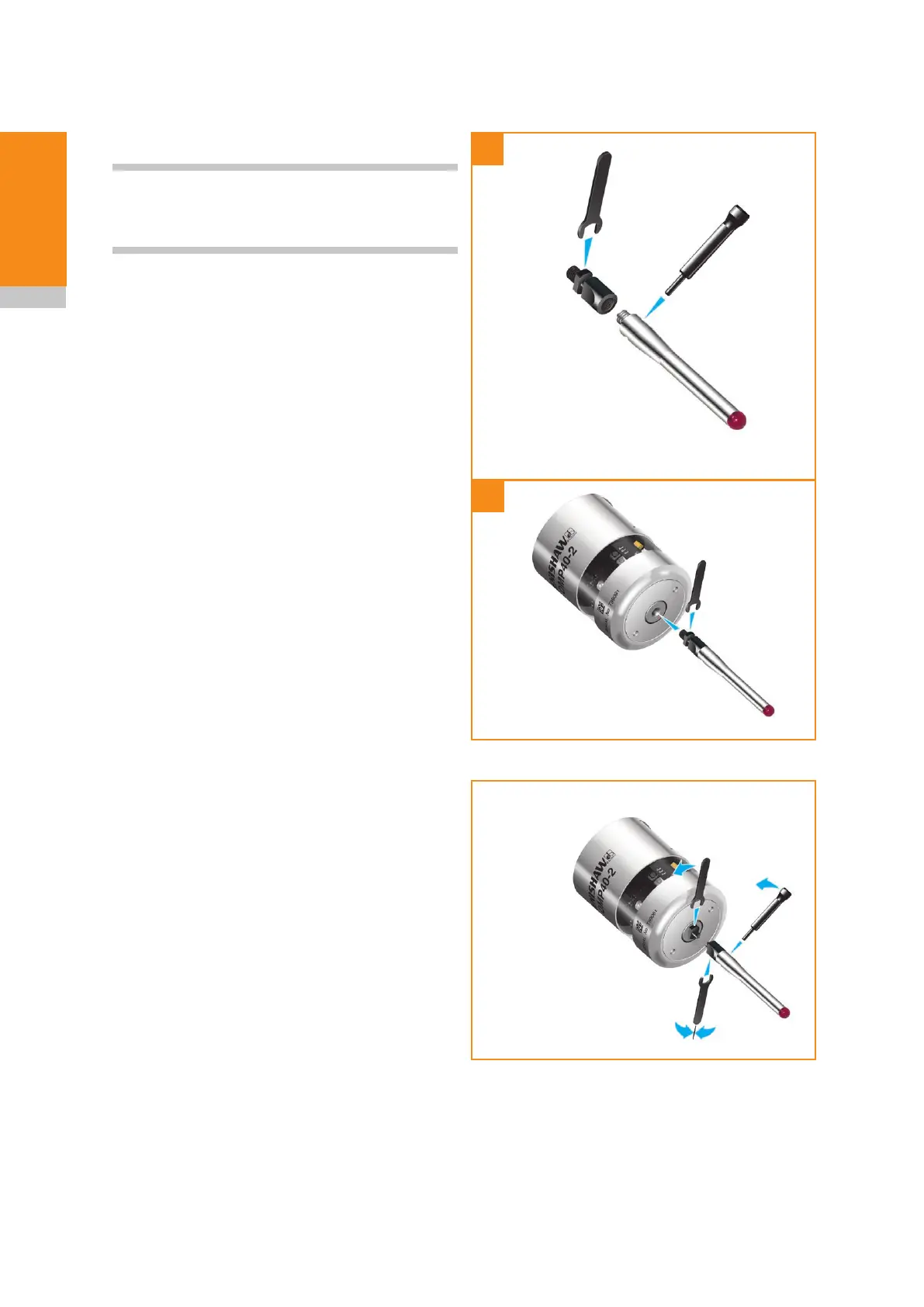

Fitting a stylus with a weak link onto the
OMP40-2
In the event of excessive stylus overtravel, the
weak link is designed to break, thereby protecting
the probe from damage.
Take care to avoid stressing the weak link during
assembly.
Removing a broken weak link
1.8 Nm – 2.2 Nm
(1.3 lbf.ft – 1.6 lbf.ft)
5.0 mm A/F
2 Nm (1.7 lbf.ft)
To Next Page
