3.7
System
installation

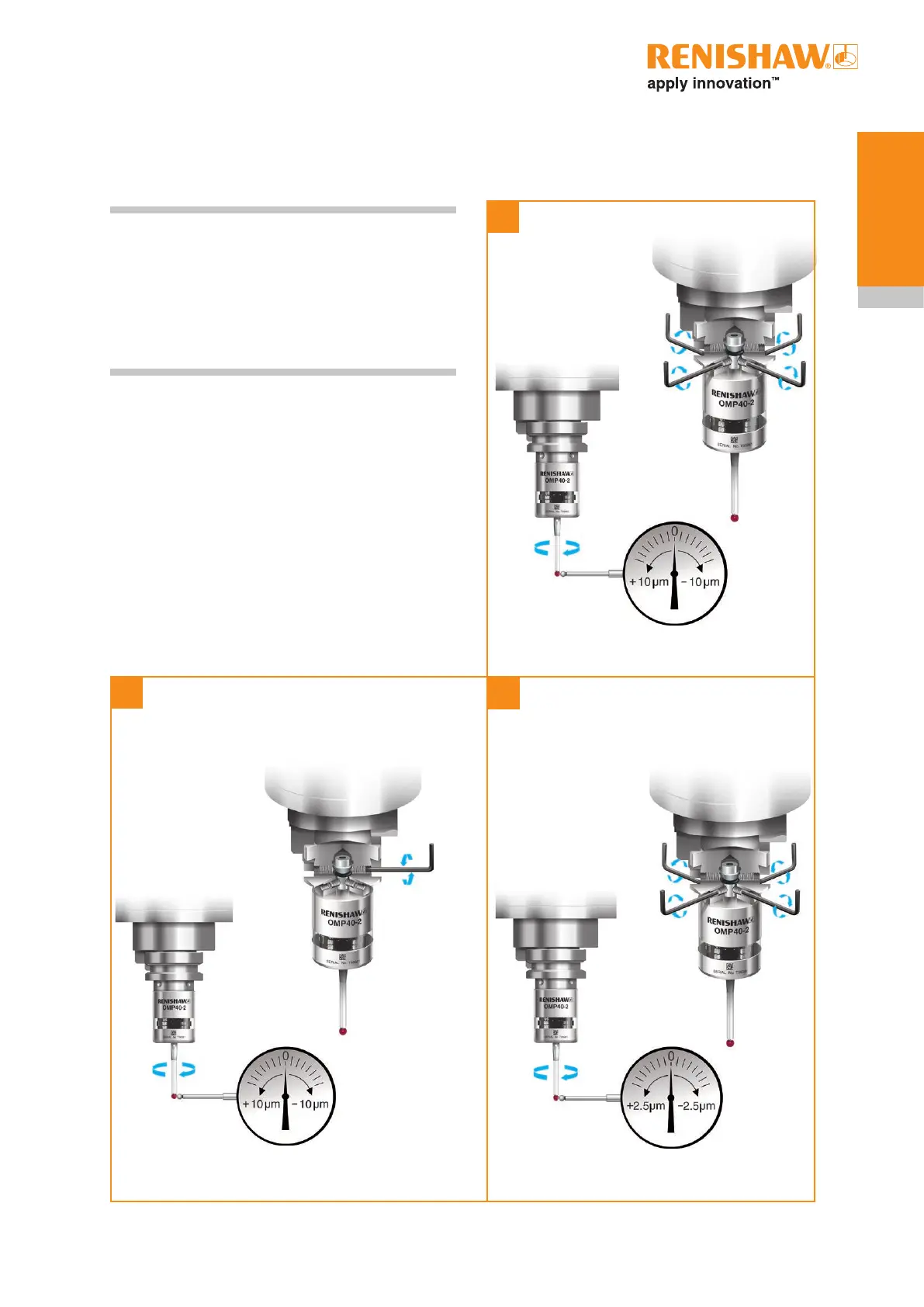

Stylus on-centre adjustment
1.5 Nm – 2.2 Nm
(1.1 lbf.ft – 1.6 lbf.ft)
1.5 Nm – 2.2 Nm
(1.1 lbf.ft – 1.6 lbf.ft)
NOTES:
If a probe and shank assembly is dropped, it must
be rechecked for correct on-centre adjustment.
Do not hit or tap the probe to achieve on-centre
adjustment.
× 4
× 2
× 4
360°
360°
360°
