6.1
OMP40M system
OMP40M is a special modular version of
OMP40-2 which has an enhanced window and
metal battery cassette. It enables probe inspection
of part features inaccessible to OMP40-2, by
fitting selected adaptors and extensions as shown
below.
See Section 9, “Parts list”.

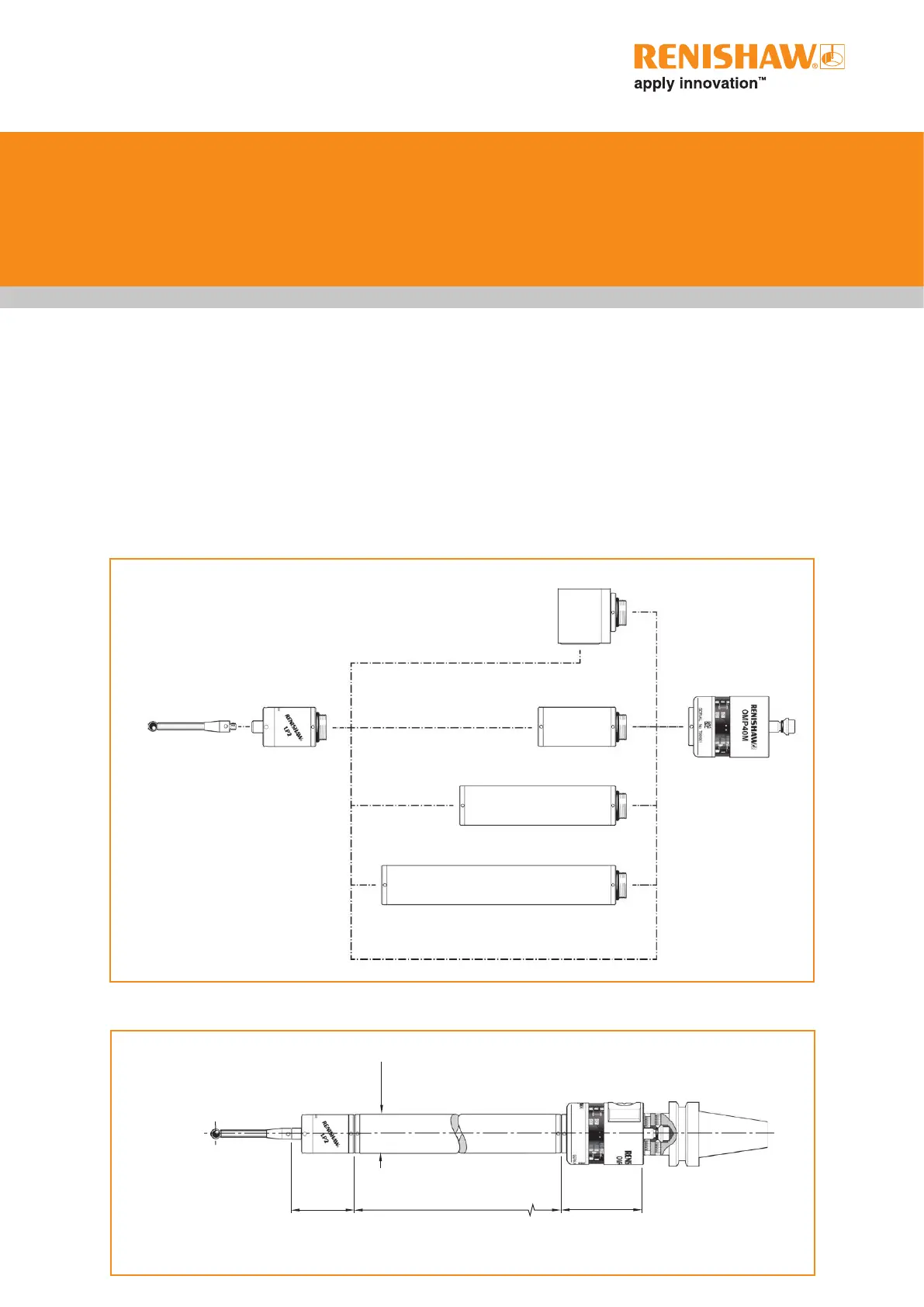

OMP40M system
OMP40M dimensions
M4 stylus
LP2 probe
LPE3 extension bar (150 mm)
LPE2 extension bar (100 mm)
LPE1 extension bar (50 mm)
MA4 90° adaptor
OMP40M module
Dimensions given in mm (in)
54 (2.13)
50 / 100 / 150
(1.97 / 3.94 / 5.91)
40.75
(1.60)
Ø25
(Ø0.98)
