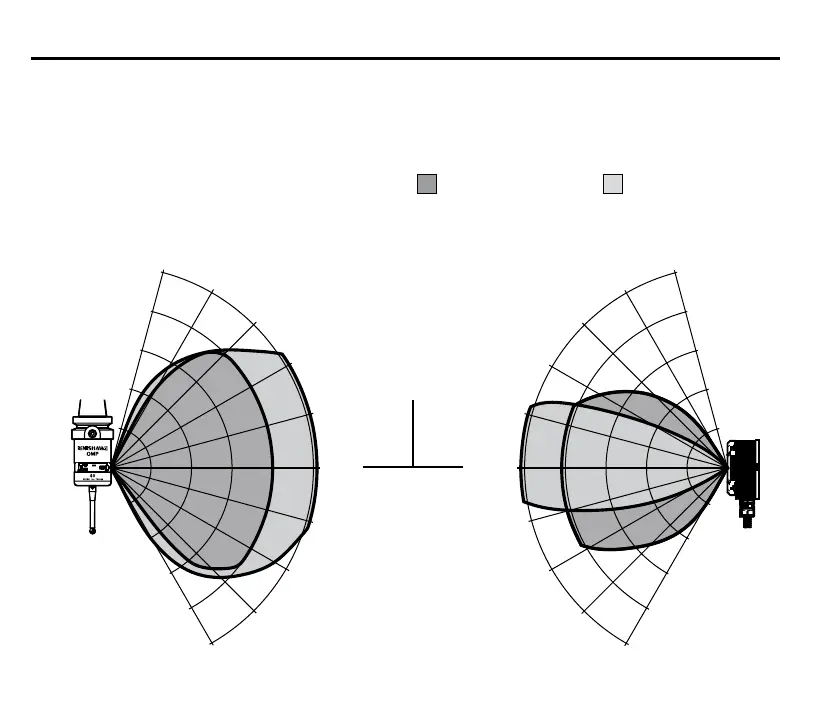

Performance envelope with OMM
Performance envelope with OMM
OMP40 probe + OMM
Probe and OMM diodes must be in the other’s
field of view, and within the performance envelope
shown.
360° range metres (feet)
SWITCH ON/OFF OPERATING
0°
OMP40
60°
45°
45°
15°
30°
30°
75°
15°
60°
OMM
0°
60°
45°
45°
15°
30°
30°
75°
15°
60°
4
(13.1)
3
(9.8)
2
(6.5)
1
(3.3)
5
(16.4)
4
(13.1)
3
(9.8)
2
(6.6)
1
(3.3)
5
(16.4)
Optical
centre
line
