17

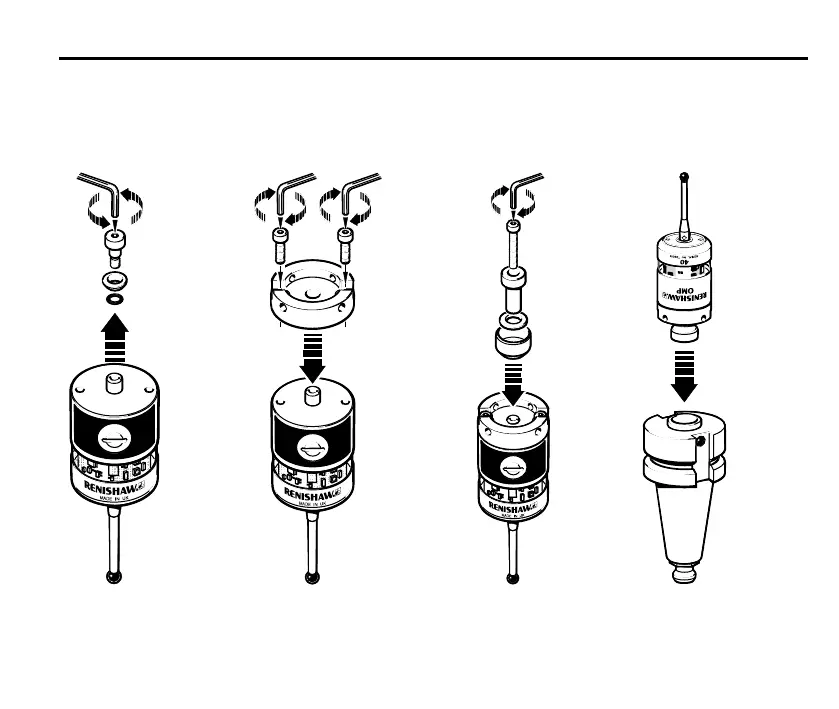

Shank adaptor assembly (optional)
Shank adaptor assembly (optional)
1. Remove.
2. Mount adaptor plate.
3. Grease and
assemble adaptor.
4. Fit to shank.
3 Nm (0.68 lbf) 3 Nm (0.68 lbf)
