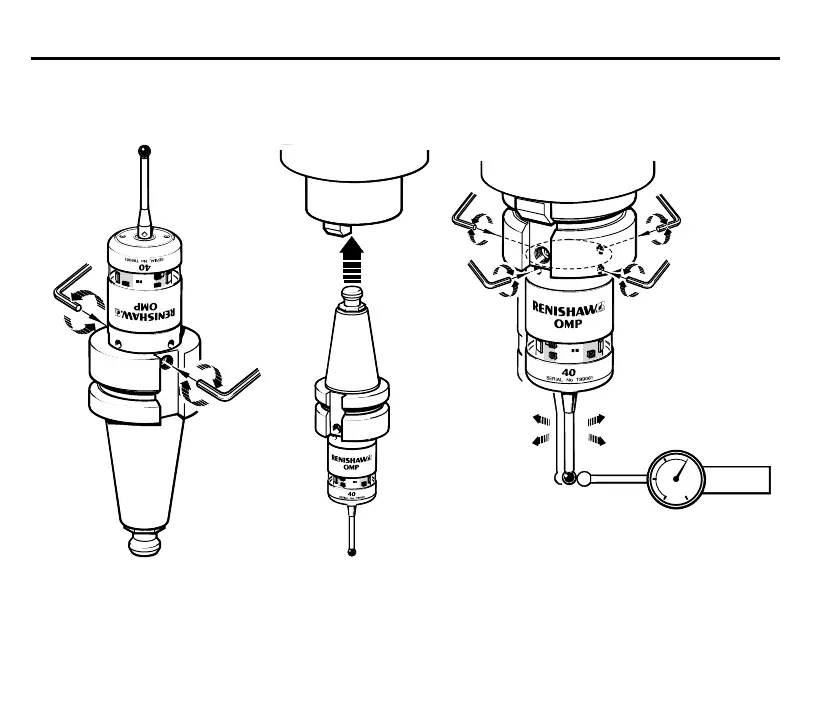

18 Shank adaptor assembly (optional)
6 Nm
(1.35 lbf)
5. Fully tighten 6. Fit to spindle
7. Screw in opposition to adjust
runout <5 µm. Fully tighten to
2.2 Nm (0.49 lbf) when complete.
