Renishaw OMP40 - OMP40 Probe Operating Modes

27

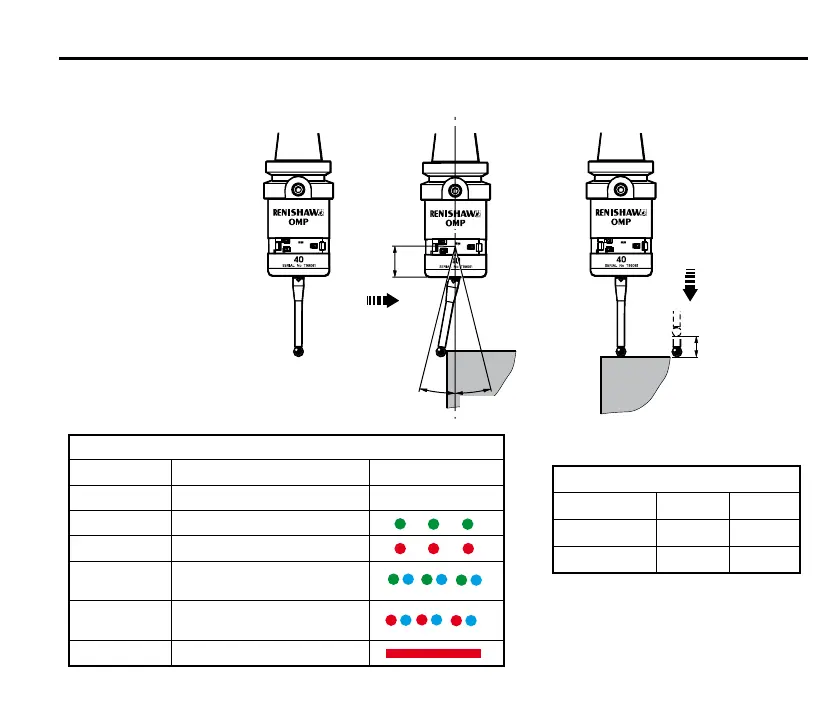

PROBE STATUS LED
LED Colour
Probe status Graphic hint
Unit Stand-by mode
Flashing green Probe seated in operating mode
Flashing red Probe triggered in operating mode
Flashing green
and blue
Probe seated in operating mode
- low battery
Flashing red
and blue
Probe triggered in operating mode
- low battery
Constant red Battery dead
dimensions mm (in)
For battery information see pages 7
and 8.
Modes of operation
Z
X / Y
19
(0.75)
6
(0.24)
12.5°
Green
LED
flashing
➤
➤
Red
LED
flashing
➤
STYLUS OVERTRAVEL LIMITS
Stylus length
±X/±Y Z
50 (1.97) 12 (0.47) 6 (0.24)
100 (3.94) 22 (0.87) 6 (0.24)
Modes of operation
12.5°
