System description

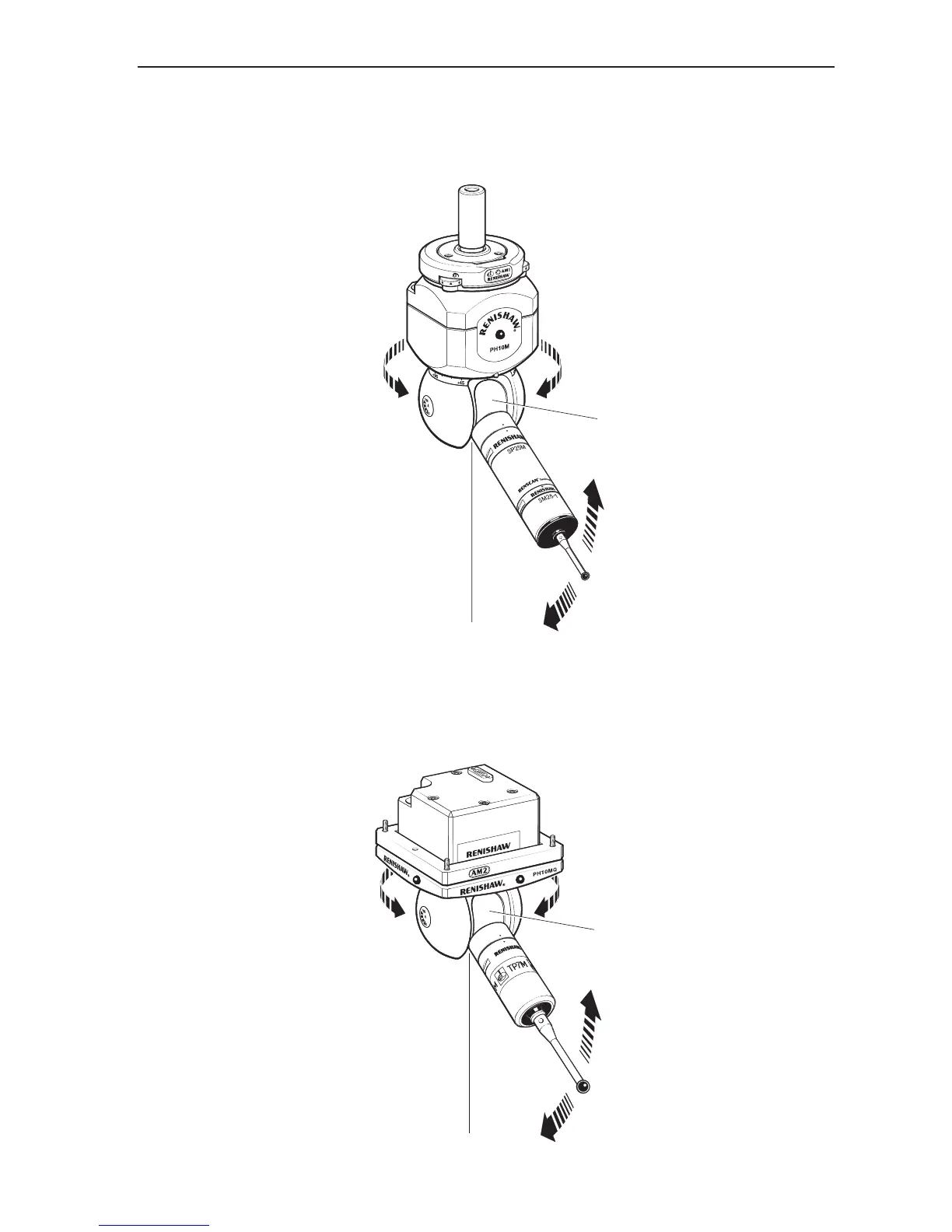

Figure 2 - PH10M with AM1 and TP7M
B axis
A axis
B axis
A axis
Figure 2 shows the shank-mounted PH10M motorised probe head fitted with an AM1 adjustment module
and a TP7M probe.
Figure 3 shows the quill-mounted PH10MQ motorised probe head fitted with an AM2 adjustment module
and a TP7M probe.
Figure 3 - PH10MQ with AM2 and TP7M
