19
IEEE parallel communications
5 IEEE parallel communications

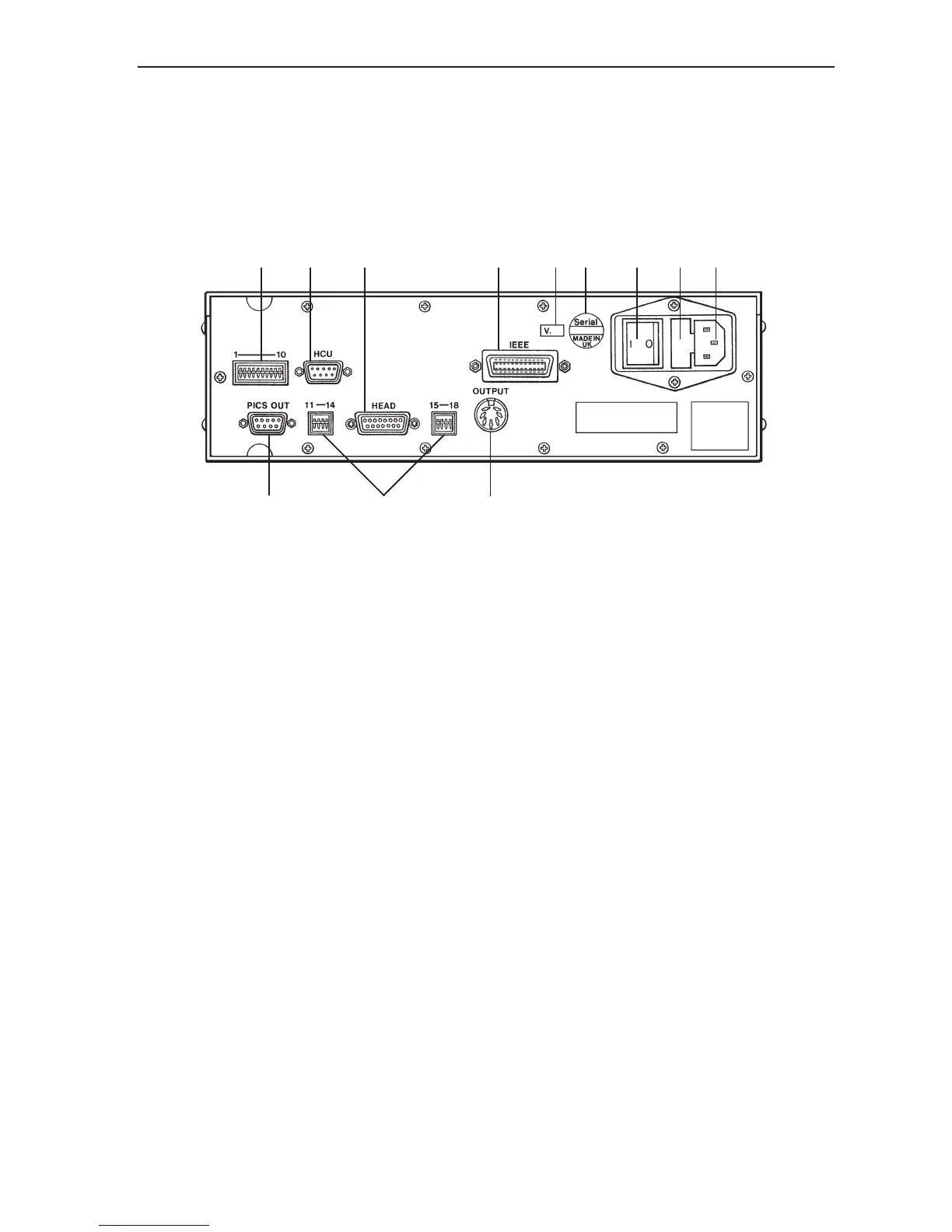

Figure 17 shows the rear panel of the PHC10-2 IEEE.
1
2 43 5 6 7 8 9
10
11 12
Figure 17 - PHC10-2 rear panel (IEEE)
Key
1 Communications protocol selection, switches 1 to 10 (see table 6)
2 9-way D-type connector to HCU1
3 15-way D-type connector to probe head (see table 14)
4 24-way D-type IEEE communications connector to CMM computer (see table 5)
5 Version number label
6 Serial number label
7 Mains power ON/OFF switch
8 Fuseholder
9 Mains power input
10 9-way D-type connector for PICS output (see table 11)
11 Probing system format selection, switches 11 to 14 and 15 to 18 (see section 6)
12 7-pin DIN output connector to probe interface (see section 6.4.2)
