PHC10-2 front panel LEDs
7 PHC10-2 front panel LEDS

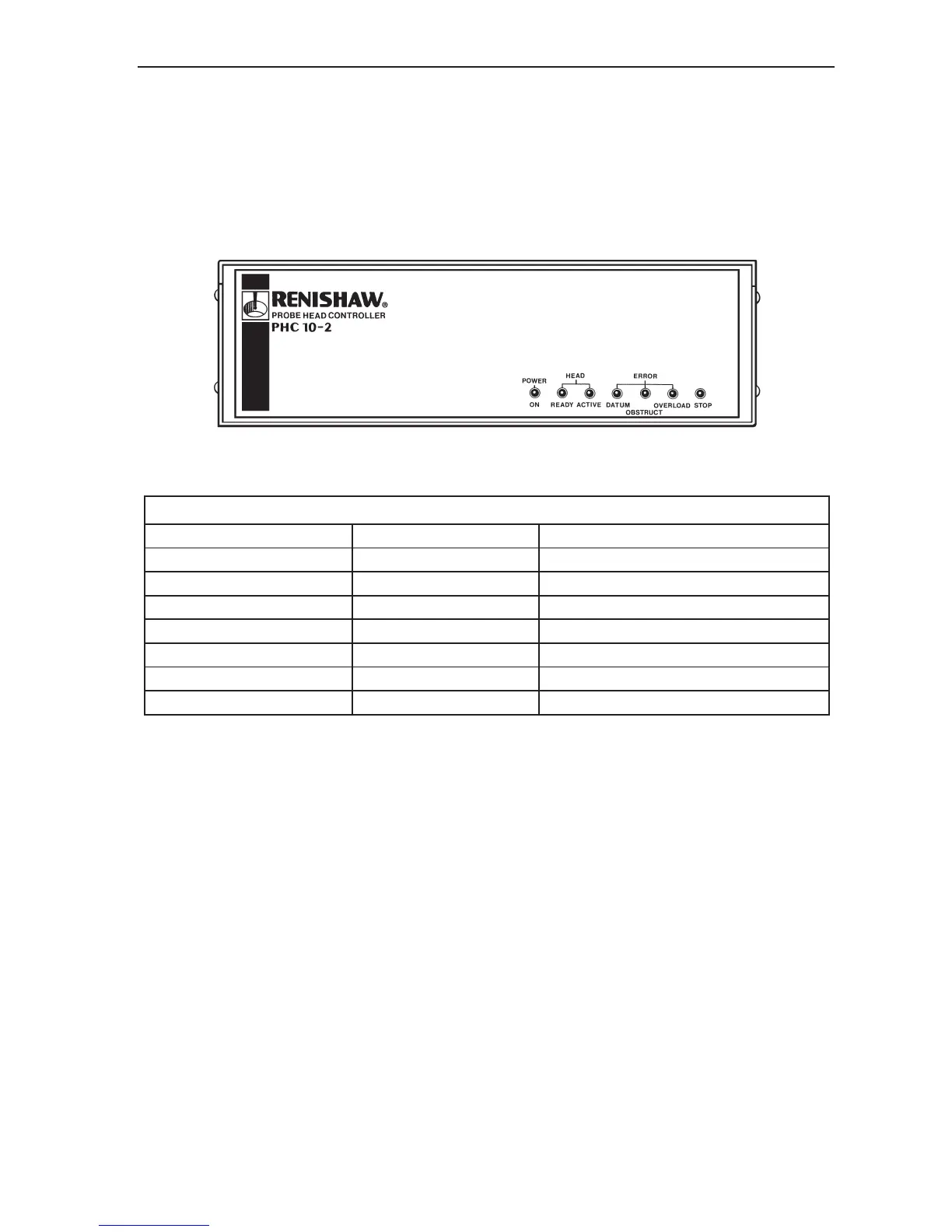

Figure 18 shows the front panel of the PHC10-2. The names, colours and functions of the LEDs are given
in table 18.
Figure 18 - PHC10-2 front panel
Table 18 - PHC10-2 LEDs
Name Colour Function
POWER ON Green Mains power ON when lit
HEAD READY Green Head ready for use when lit
HEAD ACTIVE Yellow Head indexing when lit
DATUM ERROR Red Head datum error when lit
OBSTRUCT ERROR Red Head obstruct error when lit
OVERLOAD ERROR Red Head overload error when lit
STOP Red PHC10-2 asserting PICS STOP when lit
