System description
2.3 PH10 system layout

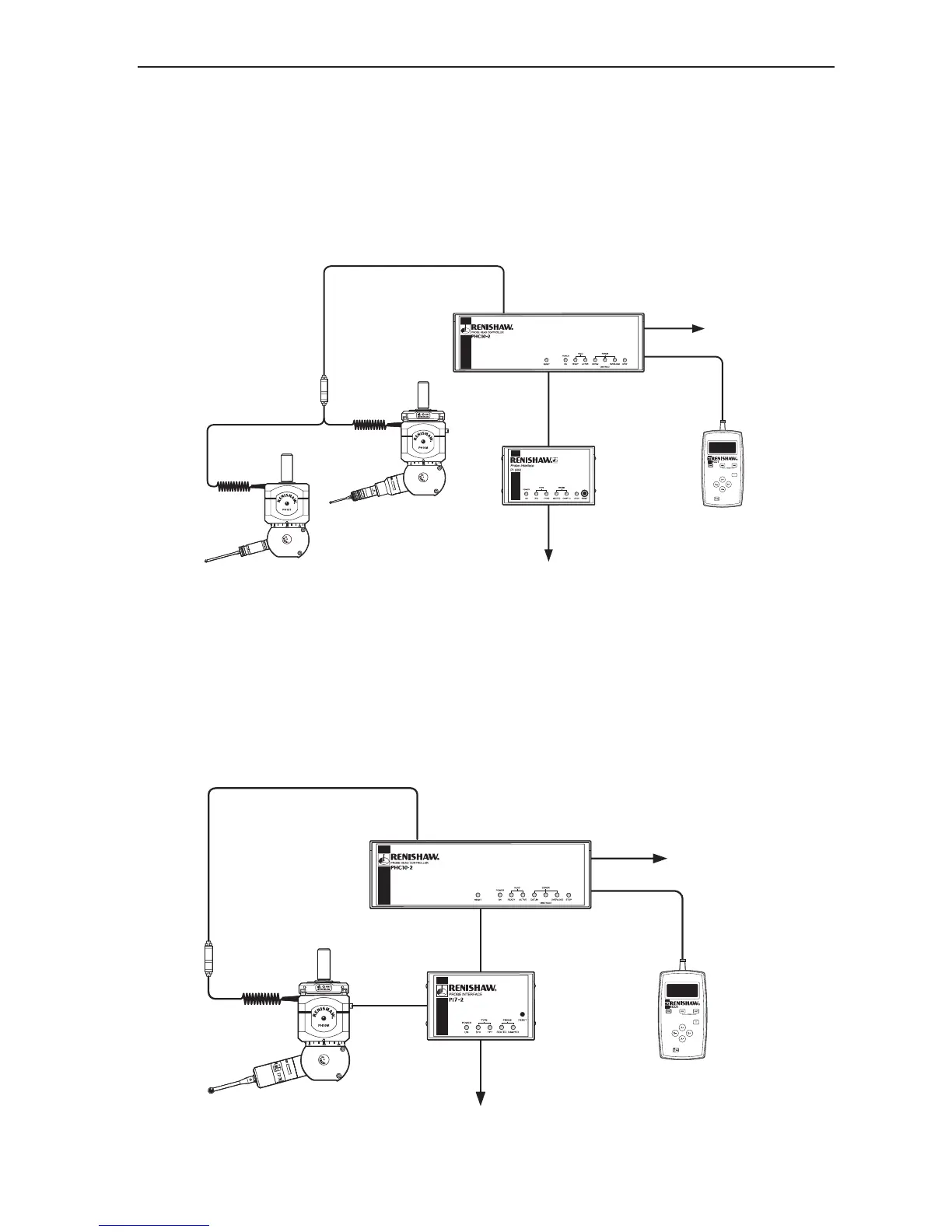

Figure 5 shows the PH10T/PH10M and PHC10-2 used in conjunction with two-wire touch-trigger probes
and appropriate interface.
Head cable
connects head
to machine
cable
PH10M motorised
probe head
Trigger output to CMM
HCU1 hand
control unit
(optional)
PHC10-2 controller
Communications
connection to
CMM controller
Machine cable
PICS product
interconnect cable
Probe
interface
(e.g. PI 7-2)
Multiwired
probe
cable
Machine cable
Head cable
connects head to
machine cable
PH10T motorised
probe head
PH10M motorised
probe head
PHC10-2 controller
Communications
connection to
CMM controller
Trigger output to CMM
HCU1 hand
control unit
(optional)
PICS product
interconnect cable
Probe
interface
(e.g. PI 200)
Figure 5 - PH10T / PH10M with two-wire probe
Figure 6 shows the PH10M and PHC10-2 used in conjunction with multiwired probes and appropriate
interface.
Figure 6 - PH10M with multiwired probe
