3.10 Height adjustment and alignment of the support structure
The height of two wheels on the support structure can be changed to compensate for an
uneven surface and for the optimal alignment of the machine.
Proceed as follows to adjust the height of the support structure:

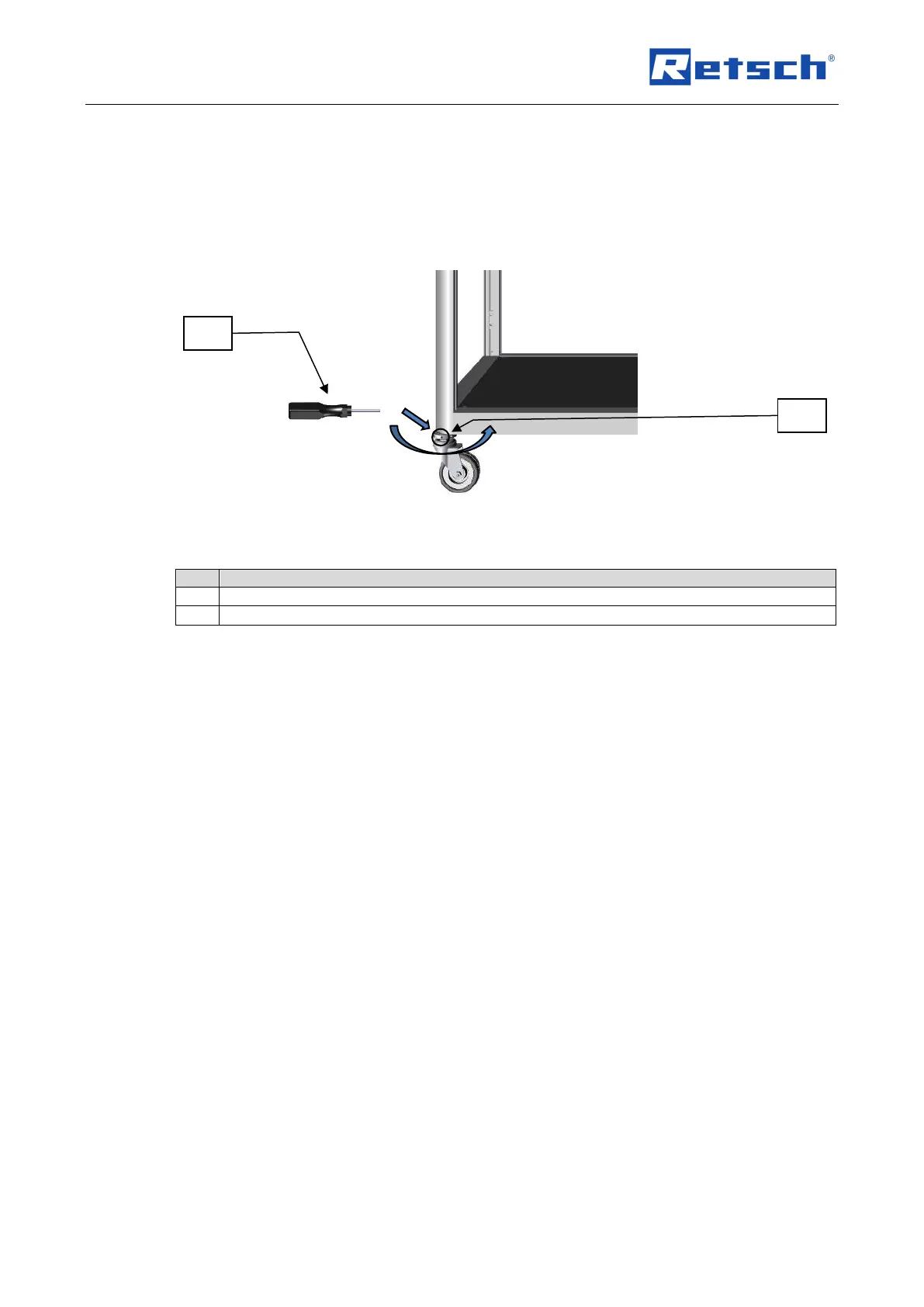

• Place the supplied locking pin (H1) into an opening of the adjusting nut (H2) on the back
wheel of the support structure.
• Use the locking pin (H1) as a lever and alter the height of the support structure by
means of horizontal lever movements until the desired height has been reached.
• Repeat the process with the other wheel until the support structure has been aligned
almost horizontally.
