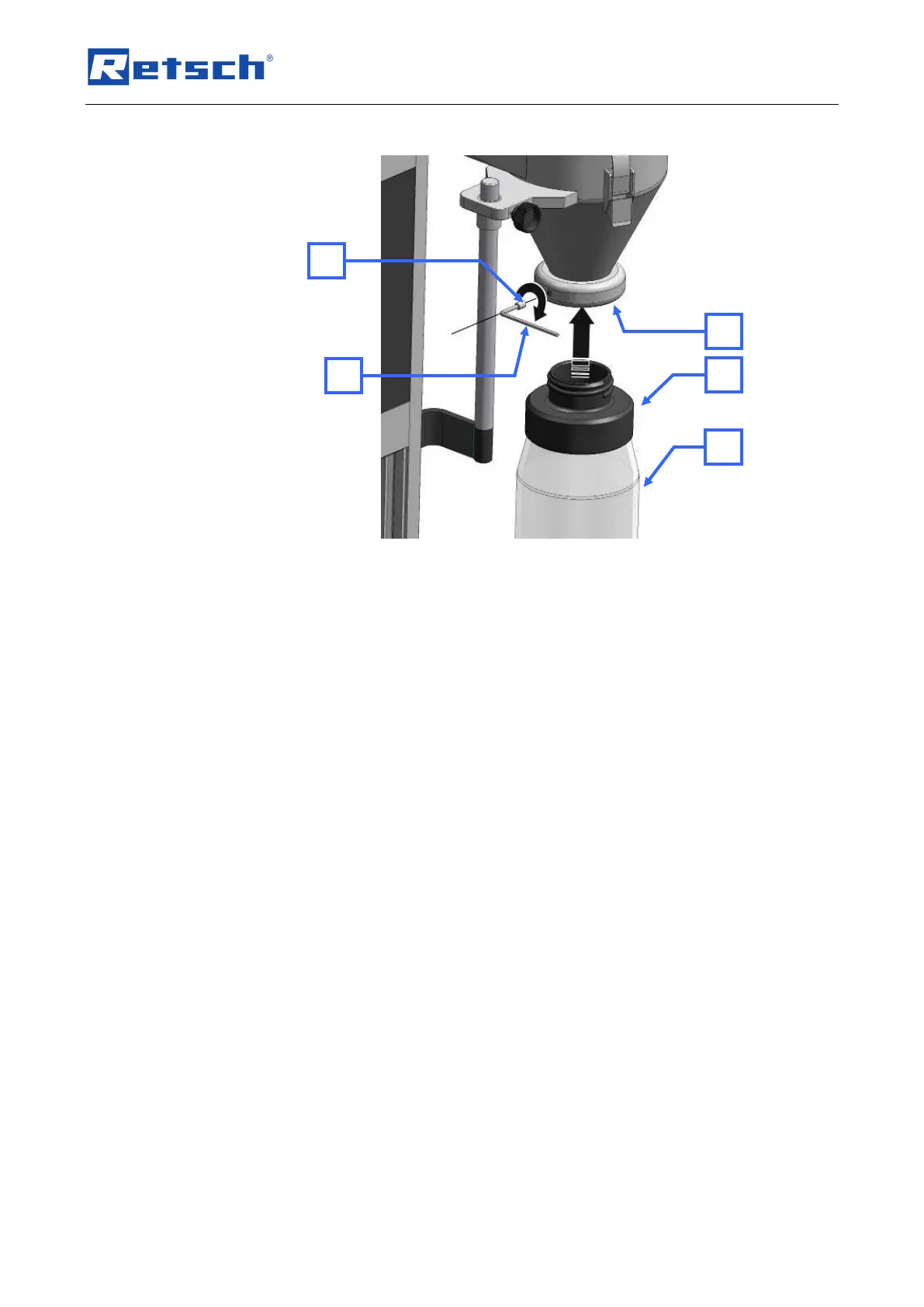

Fig. 27: Inserting the wide mouth bottle adapter
• Insert the adapter for wide mouth bottles (Z5) into the outlet opening of the
cyclone (AZ) .
• Affix the adapter using the threaded pin (GS).
• Use a SW3 Allen key to screw in the threaded pin (Z4).
This avoids the adapter turning when the wide mouth bottles are screwed in and out.
You can use 1l, 2l and 5l wide mouth bottles.
